Machine overview
Automatic Pneumatic Bottle Capping Machine
Machine overview and key points for quotation.
This machine is used for automatic capping of plastic bottles and glass bottles in cosmetics, food and beverage, pesticide and fertilizer, chemical industry,Can be applied to a variety of bottle types, high production efficiency.
Throughput
20–60 bottles/min (depending on bottle and cap size and shape)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC 220V/110V 50–60Hz
We’ll confirm voltage, air and installation requirements for your site.

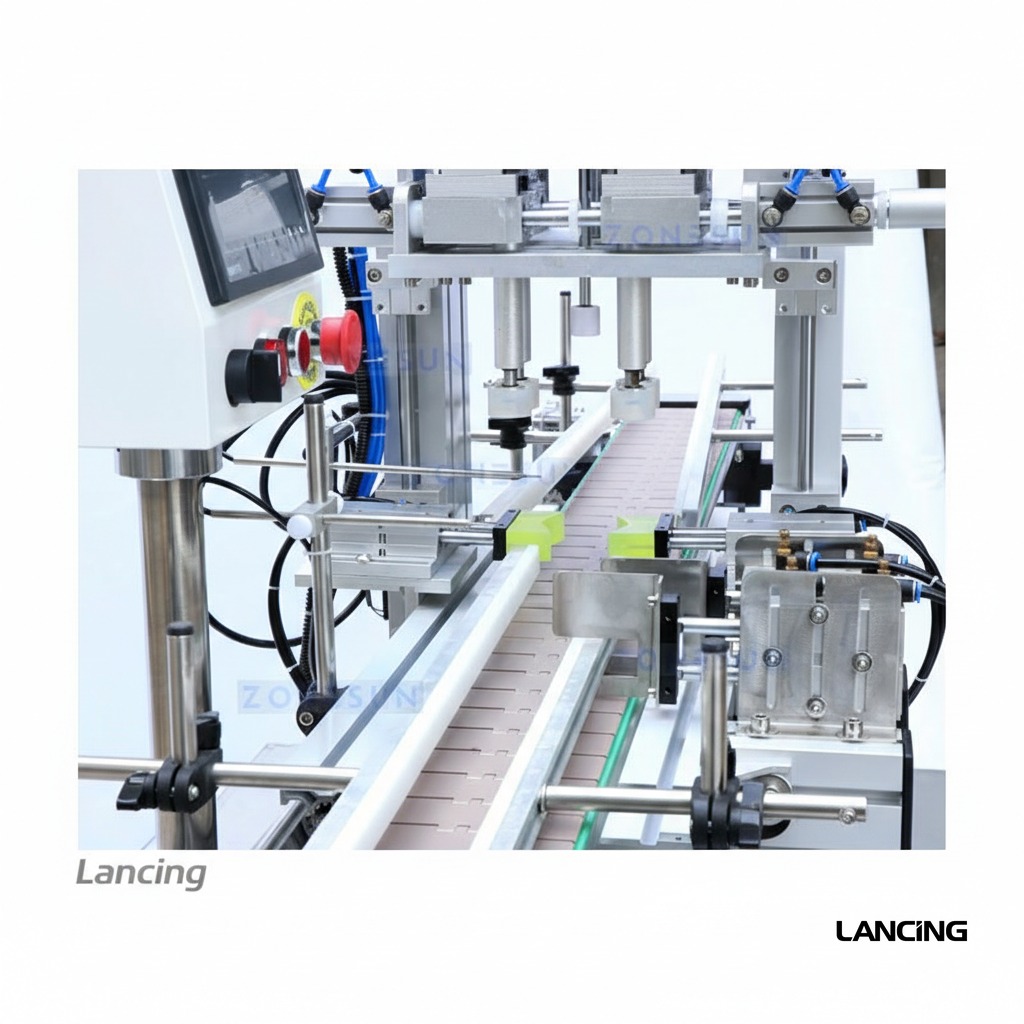

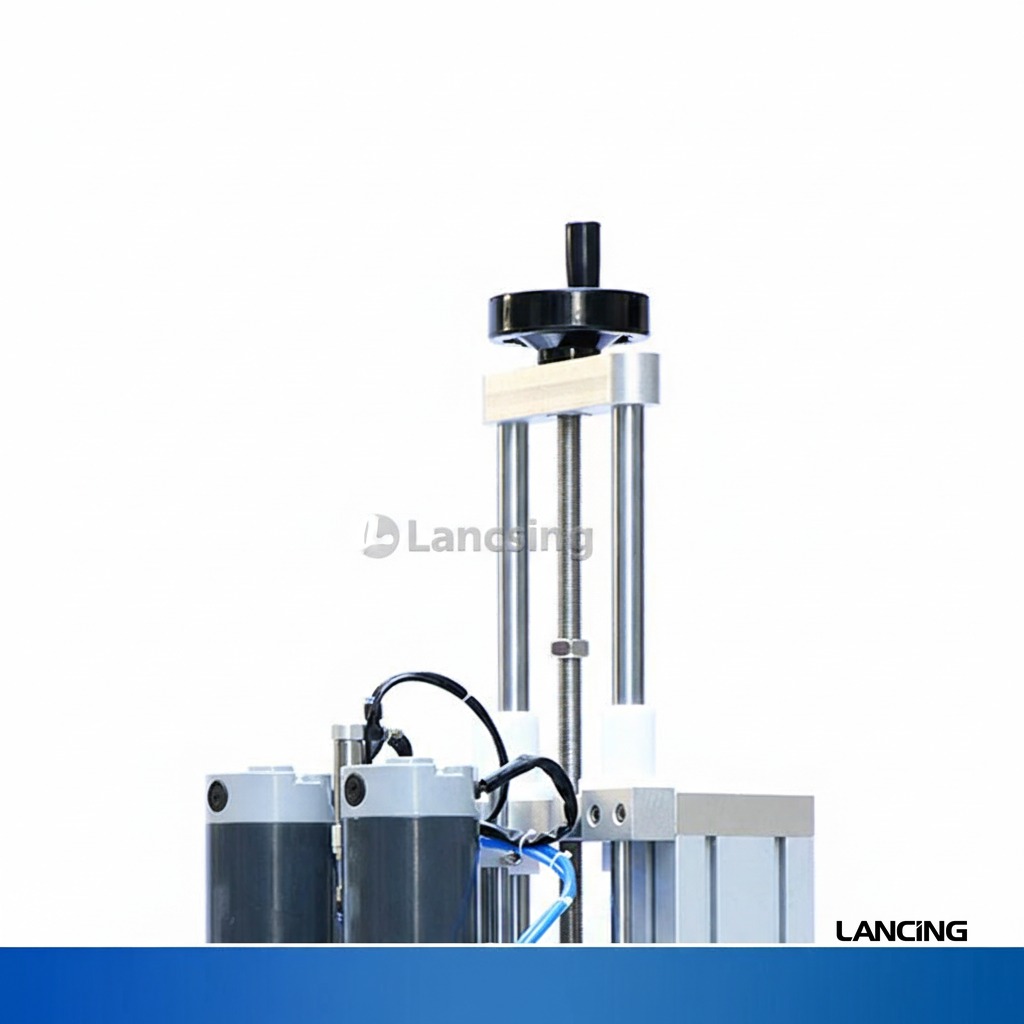

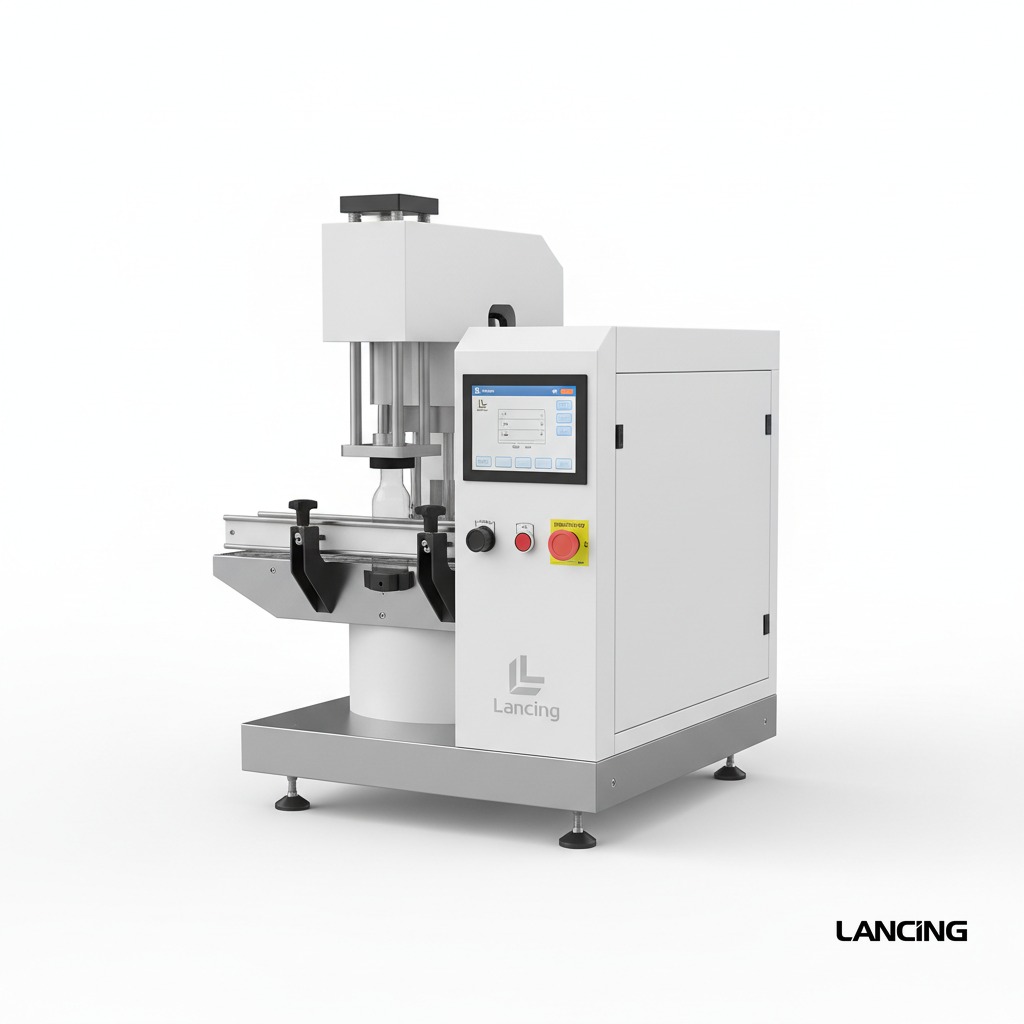

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-XG16 |
| Working Voltage | AC 220V/110V 50–60Hz |
| Bottle Height | 30–300 mm |
| Cap Diameter | 18–70 mm |
| Bottle Diameter | 20–160 mm |
| Working Speed | 20–60 bottles/min (depending on bottle and cap size and shape) |
| Working Pressure | 0.4–0.6 MPa |
| Machine Dimension | About 1930×740×1600 mm |
| Packing Size | About 2000×820×1760 mm |
| Machine Weight | About 150 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
