Machine overview
Barcode Overlay Labeling Machine
Machine overview and key points for quotation.

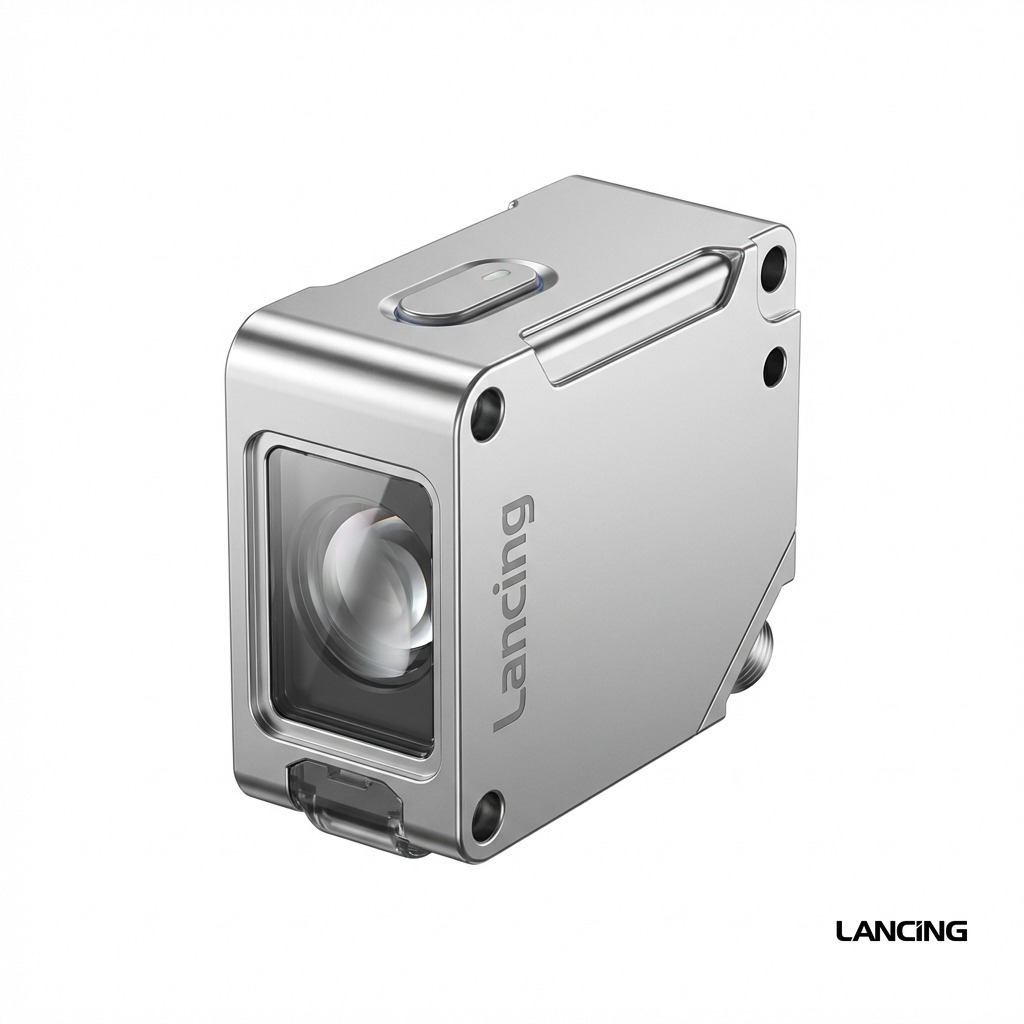

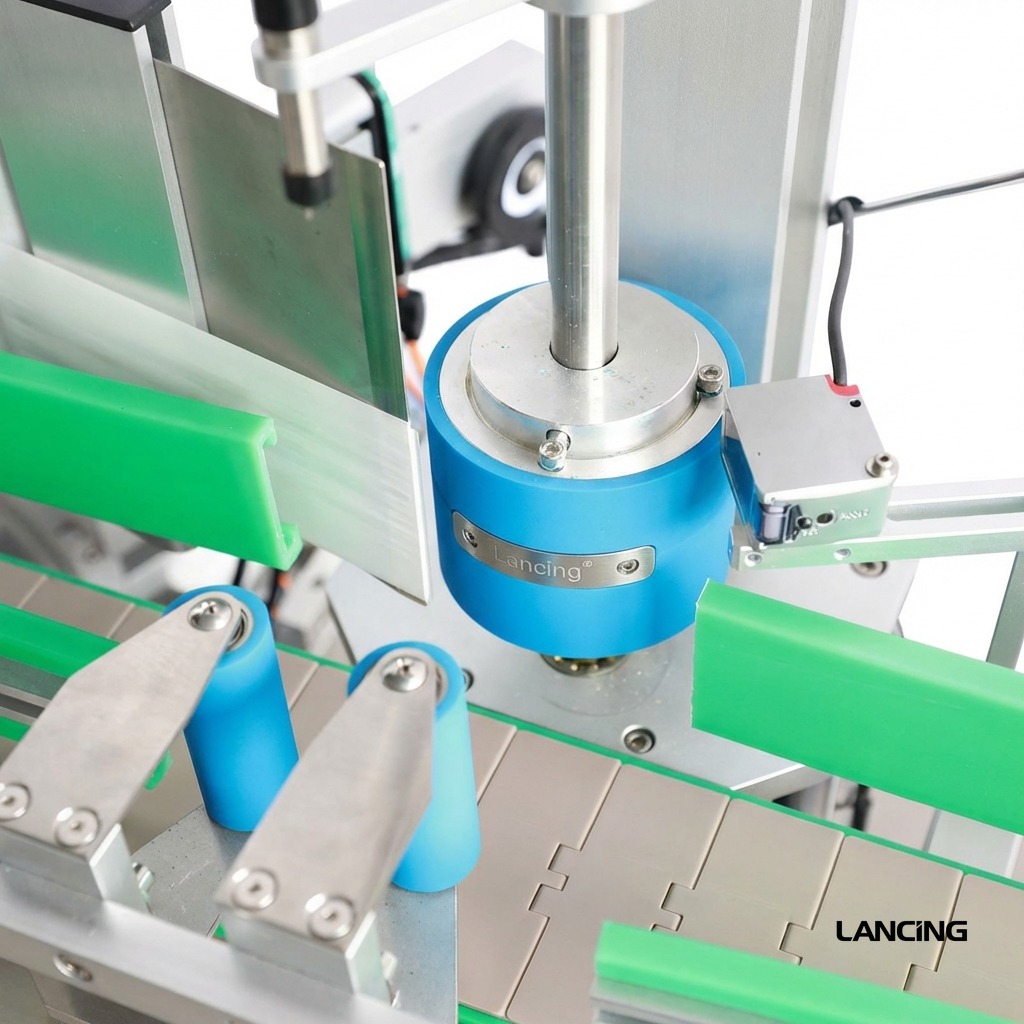

The Lancing UK LU-TB822S Positioning Round Labeling Machine is engineered for precision labeling on cylindrical containers, including over-labeling existing barcodes. Equipped with a full-spectrum color sensor, it detects subtle surface variations to ensure accurate label placement every time. Ideal for cosmetics, pharmaceuticals, food, and beverage industries, it supports customizable label sizes and handles bottles from 15–110mm in diameter. With ±2mm labeling accuracy and speeds up to 20 pcs/min, this machine offers reliable performance for high-standard packaging lines.
Throughput
15–20 pcs/min
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110V/220V, 50/60Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-TB822S |
| Voltage | 110V/220V, 50/60Hz |
| Diameter | 15–110mm |
| Height | 100–300mm |
| Suitable label size | Customizable |
| Core diameter | 76mm |
| Outer diameter | 300mm |
| Labeling speed | 15–20 pcs/min |
| Accuracy | ±2mm |
| Air pressure | 0.4–0.6MPa |
| Machine size (L×W×H) | 2131×1406×1046mm |
| Package size | 210×145×163cm |
| Package weight | 378kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
