Machine overview
ZS-YTPP2W Semi-automatic 2 Nozzles Peristaltic Pump Liquid Filling Machine
Machine overview and key points for quotation.
Semi-automatic 2 Nozzles Peristaltic Pump Liquid Filling Machine , sales and related technical services of modern high-tech enterprises. Opens in a new window.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V/110V, 50–60Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| The machine has two working modes | Automatic and manual mode. In manual mode, operator can use the pedal switch to fill bottles. Easy to operate. This machine is suitable for thick liquid like gel, it can fill 4L/min at max. Also, this one can be used to fill water, beverage, milk, perfume,toner, etc |
| Machine Model | LU-YTPP2W |

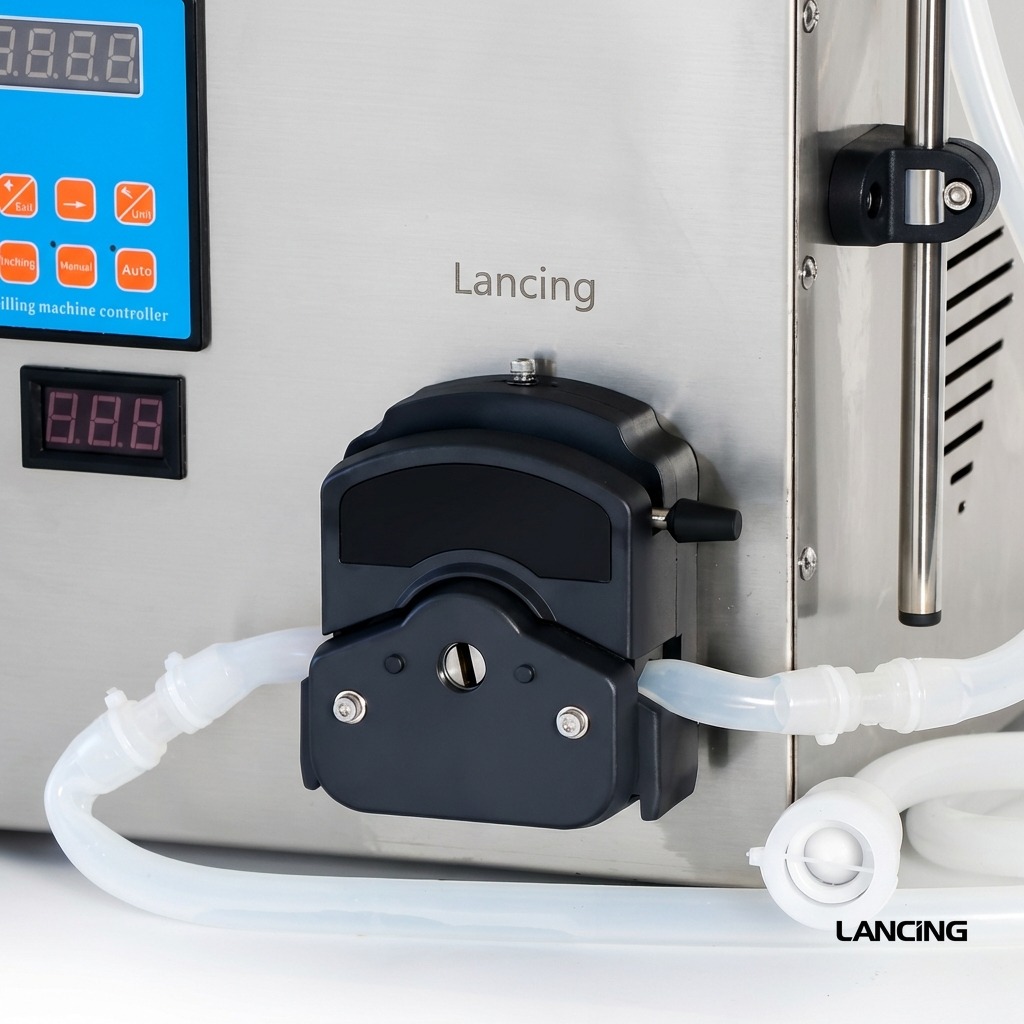

| Pump Type | Peristaltic Pump |
| Voltage | 220V/110V, 50–60Hz |
| Power | 60W |
| Maximum Flow Rate | 4L or 12L/min × 2 (based on water) |
| Filling Nozzle Diameter Outer Diameter | 10mm |
| Machine Size Approx. | 500 × 310 × 265mm |
| Machine Weight | 20kg |
| Package Size Approx. | 610 × 450 × 320mm |
| Package Weight | 26kg |
| Theoretical | Calculation Is for Reference Only The filling volume can be initially estimated based on the rated flow rate of the pump. For example, if the pump capacity is 4 L/min (4000 ml/min), the theoretical flow rate is approximately 66.67 ml/s. Filling 500 ml would therefore require about 7.5 seconds under ideal conditions. However, this value is only a reference and should not be used as the final setting. |
| Pump | Capacity Should Match the Filling Volume Although a 4 L pump can theoretically fill up to 4000 ml, filling large volumes will require longer filling time, which directly affects production efficiency. Therefore: Small-volume filling (e.g. ≤ 500 ml): a 4 L pump is generally suitable Large-volume filling (e.g. ≥ 1000 ml): a higher-capacity pump is recommended to reduce filling time and improve productivity |
| Small-volume filling (e.g. ≤ 500 ml) | a 4 L pump is generally suitable |
| Large-volume filling (e.g. ≥ 1000 ml) | a higher-capacity pump is recommended to reduce filling time and improve productivity |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
