Servo Peristaltic Pump Juice Beverage Liquid Liquid Filling Machine
Machine overview and key points for quotation.

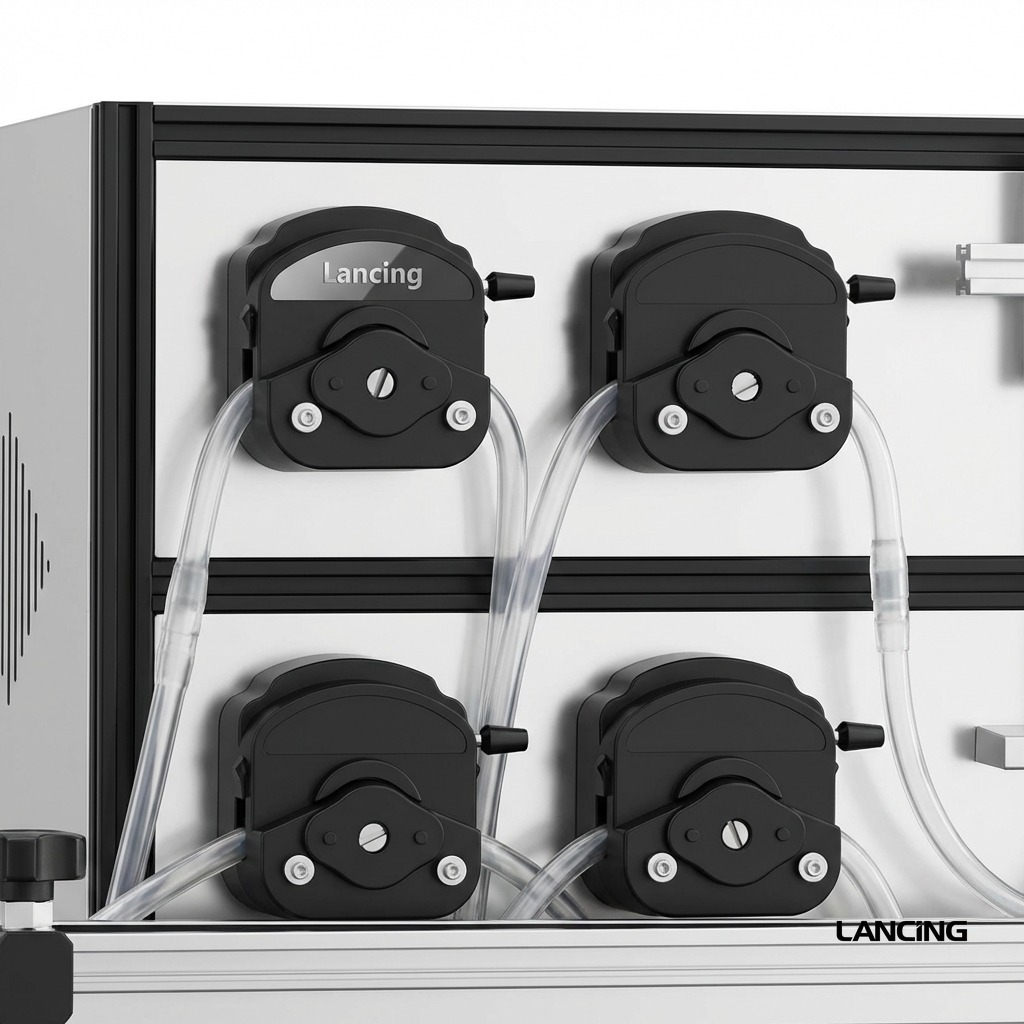

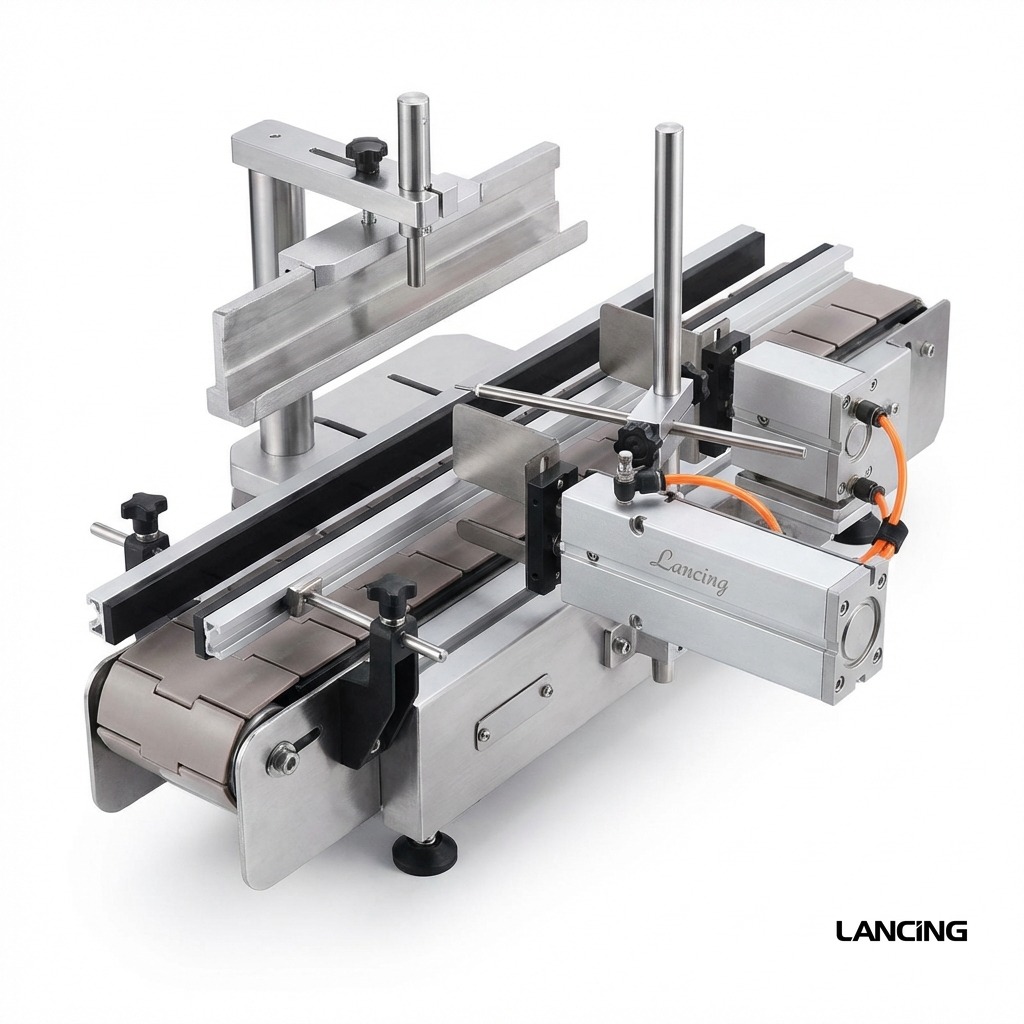

This Lancing UK LU-SVPP80C automatic filling machine is designed for efficiency and precision . Featuring four filling heads , each powered by a peristaltic pump and driven by a servo motor , it ensures accurate and consistent filling volumes. The filling heads are equipped with a pneumatic lifting mechanism , and a pneumatic anti-drip bar prevents leaks after filling. The user-friendly touch screen interface allows for easy operation and adjustments, making it ideal for various liquid filling applications.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 50-60HZ 2KW
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-SVPP80C |
| Voltage | 110/220V 50-60HZ 2KW |
| Filling pump | Peristaltic pump |
| Max flow rate | 2.4L/min4 |
| Container size | Φ20-100mm H50-300mm |
| Recommend filling range | About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.) |
| Working capacity | About 10-20BPM (based on 100ml water, this depends on filling range and filling material) |
| Size of air compressor connector | OD8mm |
| Machine size | About 2000×800×1800mm |
| Package size | About 2070×800×1740mm |
| Package weight | About 251kg. |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
