Machine overview
ZS‑DPYT3000 Single Head Heat Resistant Liquid Filling Machine
Machine overview and key points for quotation.
The Lancing UK ZS‑DPYT3000 Single Head Liquid Filling Machine offers precision, efficiency, and versatility for small‑scale production. Its anti‑drip nozzle ensures clean, accurate fills, while the intelligent eye sensor streamlines operation. Heat‑resistant design allows filling of liquids up to 100 °C, and detachable inlet/outlet tubes make cleaning and maintenance simple. A microcomputer control system provides timing accuracy down to 0.1 second, making it ideal for water, beverages, sauces, juices, soybean milk, toner, and other low‑viscosity, particle‑free, non‑foaming liquids.
Throughput
Adjustable
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC 110‑220 V 50‑60 Hz, Output voltage DC 12 V
We’ll confirm voltage, air and installation requirements for your site.

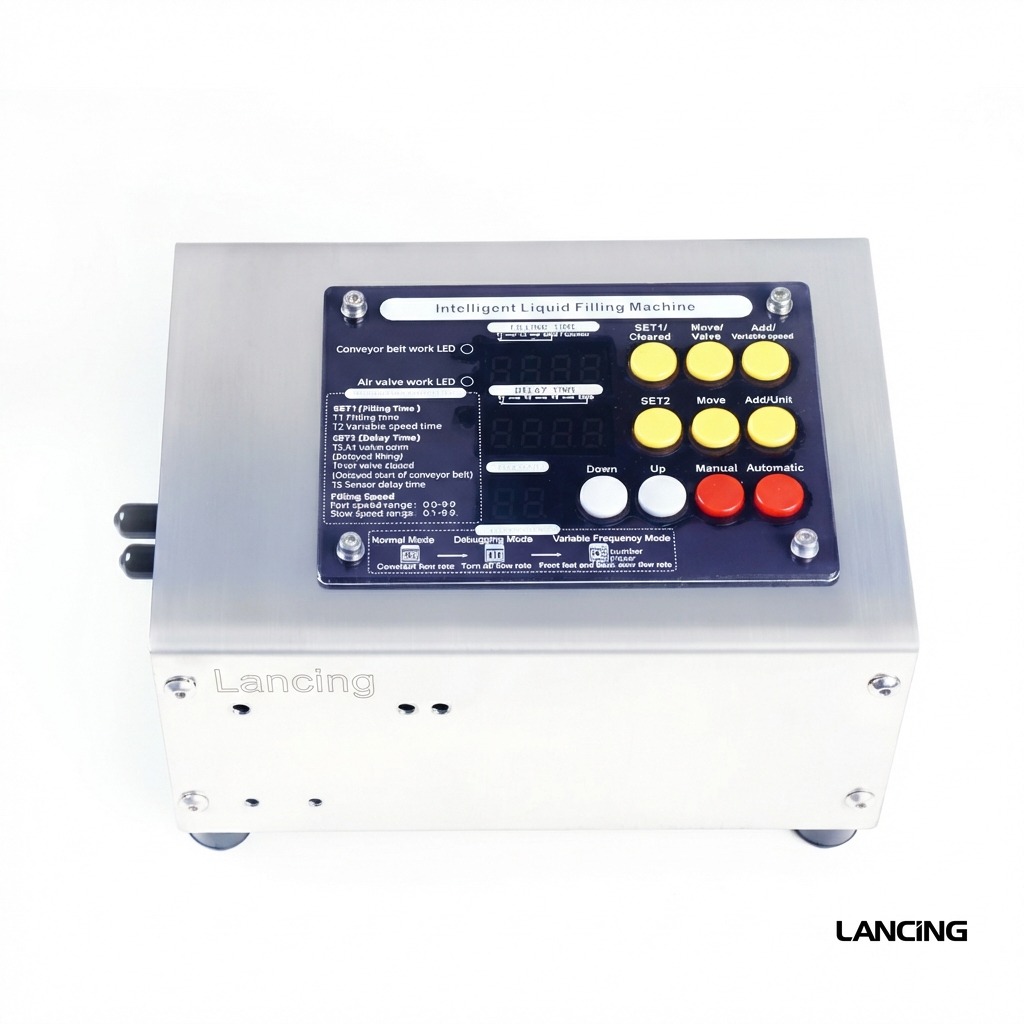

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Item | ZS‑DPYT3000 |
| Model | ZS‑DPYT3000 |
| Pump Type | Diaphragm pump |
| Max. Temp. | 5 – 50 °C |
| Min. Fill Rate | 10 ml |
| Recommended Fill Rate | 10 – 500 ml |
| Max. Flow Rate | 3000 ml/min |
| Nozzle Diameter | 9 mm |
| Machine Size | 636 × 166 × 179 mm |
| Voltage | AC 110‑220 V 50‑60 Hz, Output voltage DC 12 V |
| Filling Speed | Adjustable |
| Filling Counter | Counting range: 1‑9999 |
| Inlet/Outlet Tube | Inlet: 1.5 m / Outlet: 0.8 m |
| Working Mode | Manual, automatic, intelligent induction |
| Memory Function | Available |
| Package Size | 650 × 170 × 180 mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
