Machine overview

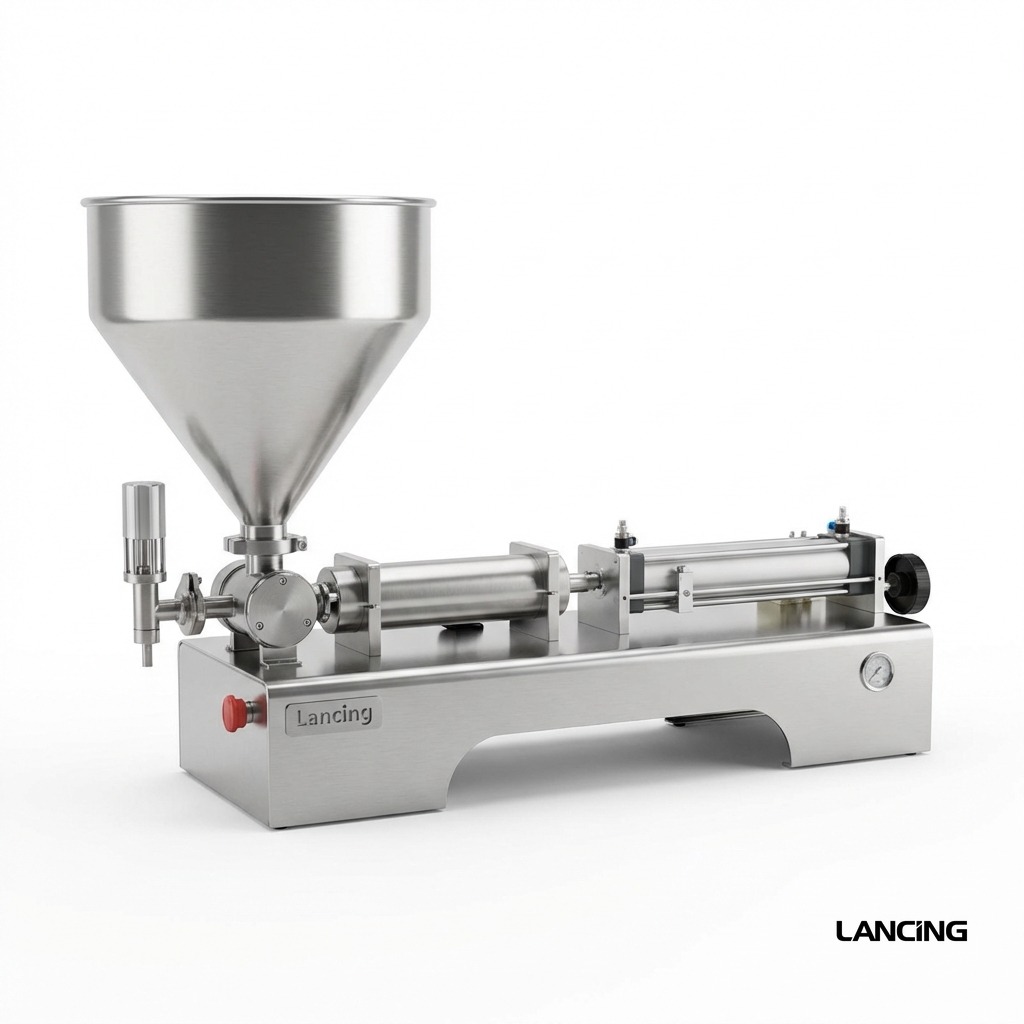

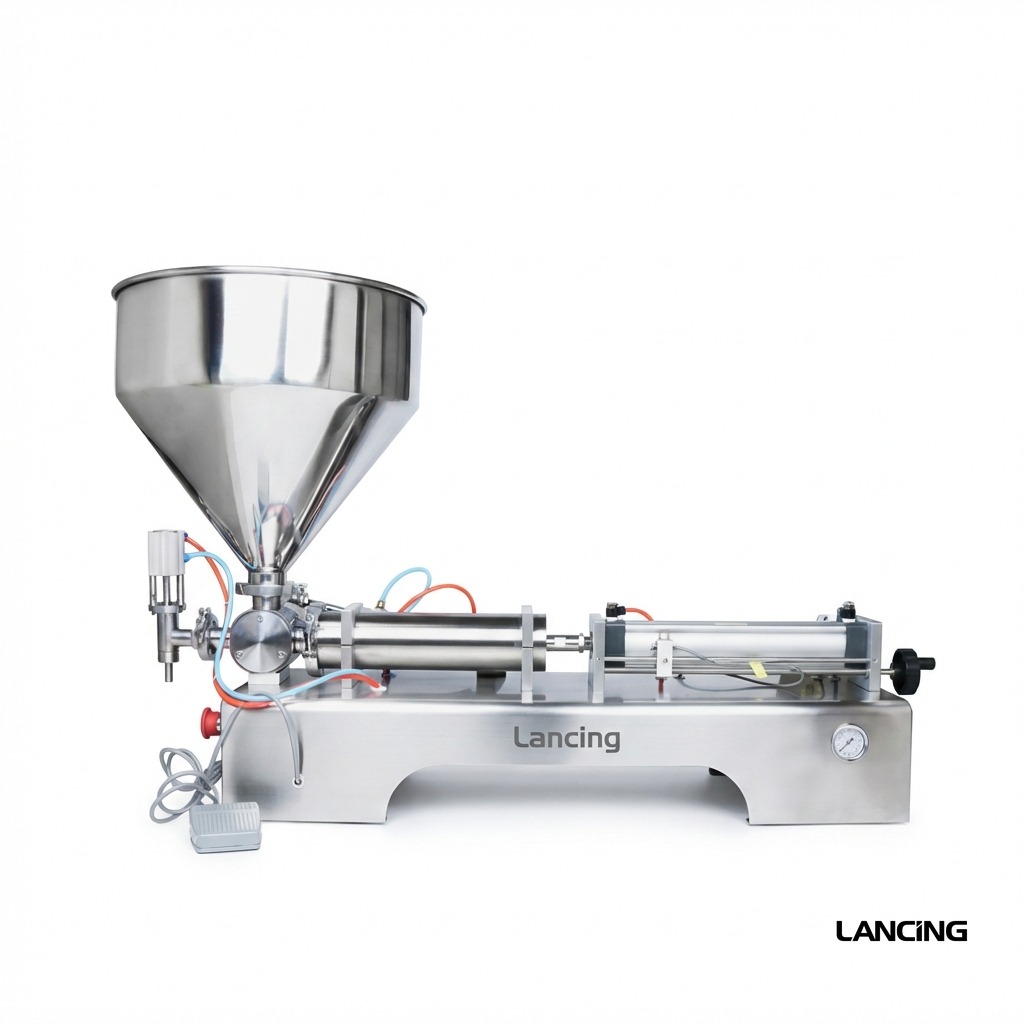

ZS-GT1 Single Nozzle Pneumatic Paste & Viscous Liquid Filling Machine
Machine overview and key points for quotation.
This pneumatic paste filling machine is suitable for filling thick liquid like gel,shampoo,soybean sauce,honey,pepper sauce etc.The filling range and speed is adjustable according to production needs.It is widely used in food,cosmetics,beverage industries. Machine Model: LU-GT1 Paste Filling Machine
Throughput
5–20 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V / 110V, 50–60Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Voltage Supply | 220V / 110V, 50–60Hz |
| Power | 10W |
| Filling Accuracy | ≤ ±0.5% |
| Filling Speed | 5–20 bottles/min |
| Filling Volume Options | 10–100ml / 10–200ml / 30–300ml / 50–500ml / 100–1000ml / 500–2500ml / 1000–5000ml |
| Working Air Pressure | 0.4–0.6MPa |
| Air Compressor Connector Size | Outer Diameter 8mm |
| Air Consumption | ≥ 0.1m³/min |
| Machine Model | LU-GT1 Paste Filling Machine |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
