Machine overview
ZS-SV4P Servo Paste Filling Machine
Machine overview and key points for quotation.

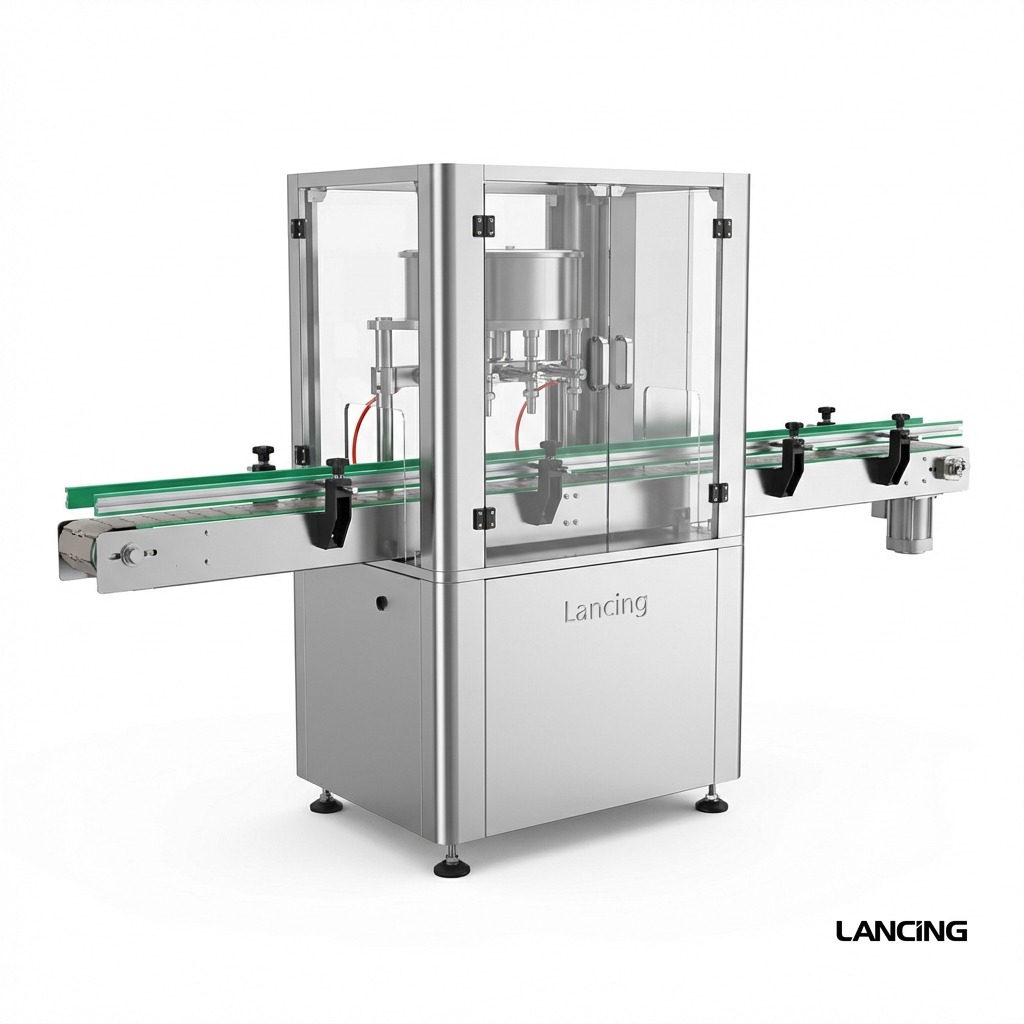

The LU-SV4P is a high-precision filling machine designed for viscous liquids like honey, syrup, lotion, and cream. Equipped with a servo motor, it allows users to set exact filling volumes for consistent, efficient operation. Ideal for small to medium-scale production, this machine combines speed, accuracy, and versatility in one compact system. Lancing UK LU-SV4P Liquid Filling Machine – Technical Specifications Parameter Details Model LU-SV4P Machine Voltage 110V / 220V, 50–60Hz Power Consumption Approx. 3000W Filling Heads 4 Heads (customizable) Filling Speed Approx. 24 bottles/min (based on 290ml water) Filling Range Options 100–1000ml / 500–3000ml / 1000–5000ml Suitable Bottle Diameter 40–110mm Suitable Bottle Height ≤230mm Filling Accuracy ≤ ±2% Conveyor Belt Size Approx. 2450 × 112mm (L × W) Package Weight Approx. 586.5kg Package Dimensions Approx. 2450 × 900 × 2190mm
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
No specifications listed yet.
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
