Machine overview
ZS-SV6X High Speed Continuous Motion Liquid Filling Machine
Machine overview and key points for quotation.

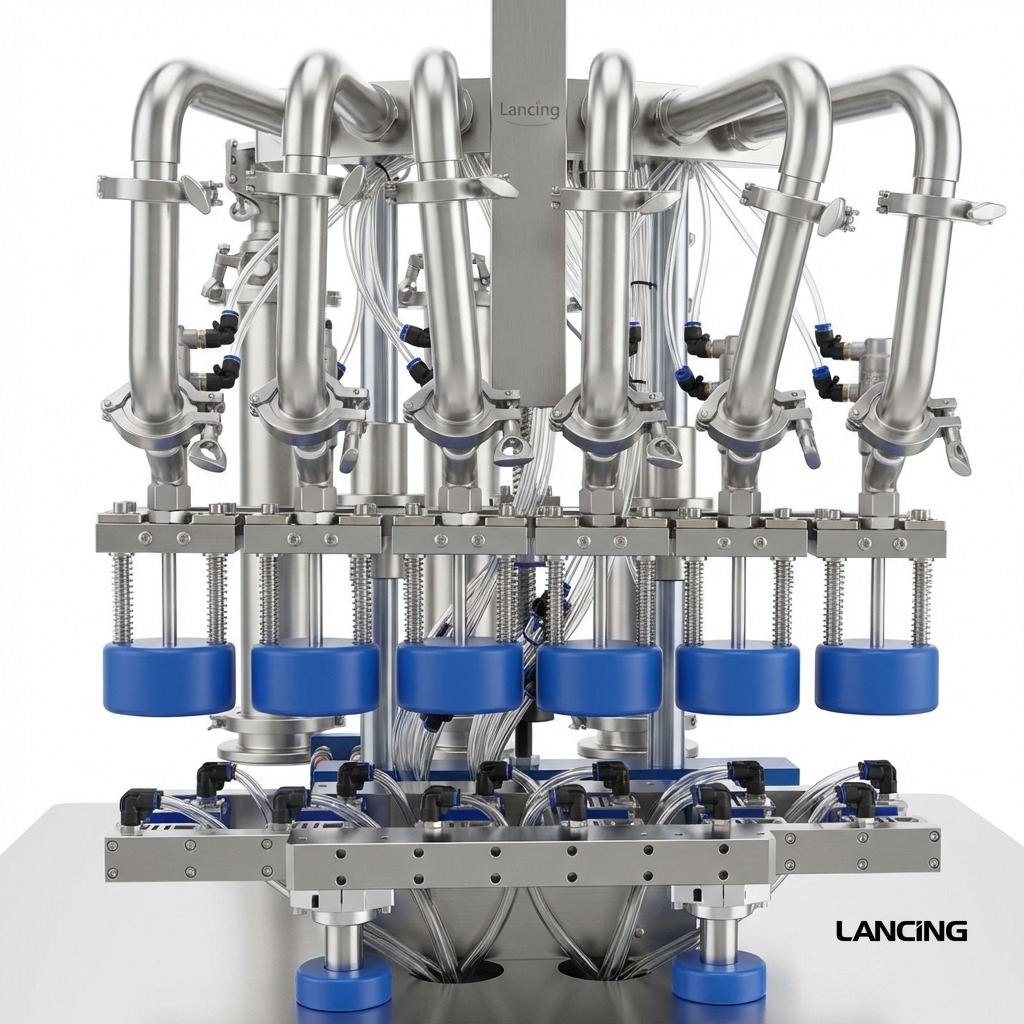

Introducing the revolutionary high-speed continuous motion filling machine! This cutting-edge system boasts unparalleled efficiency, achieving an impressive output of 4800 bottles per hour. Bottles are smoothly conveyed on a continuous belt, precisely gripped by our advanced clamping mechanism as they reach the filling station. Six independent filling heads descend simultaneously for rapid, accurate dispensing while the bottles continue their uninterrupted movement along the conveyor. This continuous motion design eliminates downtime associated with intermittent systems, maximizing your production and ROI.
Throughput
40-80 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
5-100ml / 10-300ml / 50-500ml / 100-1000ml
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 50-60HZ
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-SV6X |
| Voltage | 110/220V 50-60HZ |
| Machine power | 6KW |
| Filling range | 5-100ml / 10-300ml / 50-500ml / 100-1000ml |
| Filling pump | Piston Pump |
| Bottle height | 40-250mm |
| Bottle diameter | 30-100mm |
| Working speed | 40-80 bottles/min |
| Package size | About 2210 1260 2220mm |
| Package weight | About 950kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
