Machine overview
ZS-SXRS1 Automatic Bottle Capsule Cap Heat Shrinking Machine
Machine overview and key points for quotation.
Whatever your packaging needs are, you can rely on Lancing UK.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
2000bph
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220/380V, 50-60Hz, 4kW
We’ll confirm voltage, air and installation requirements for your site.

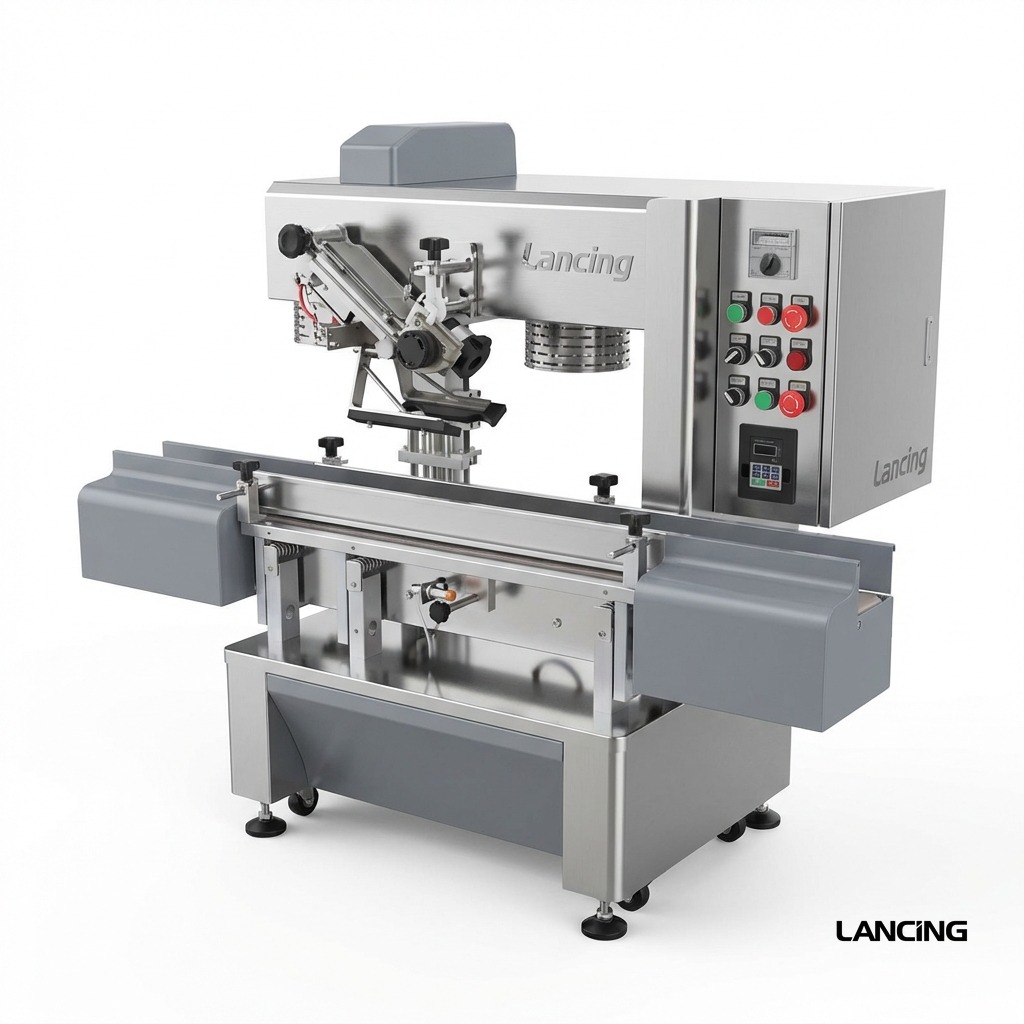

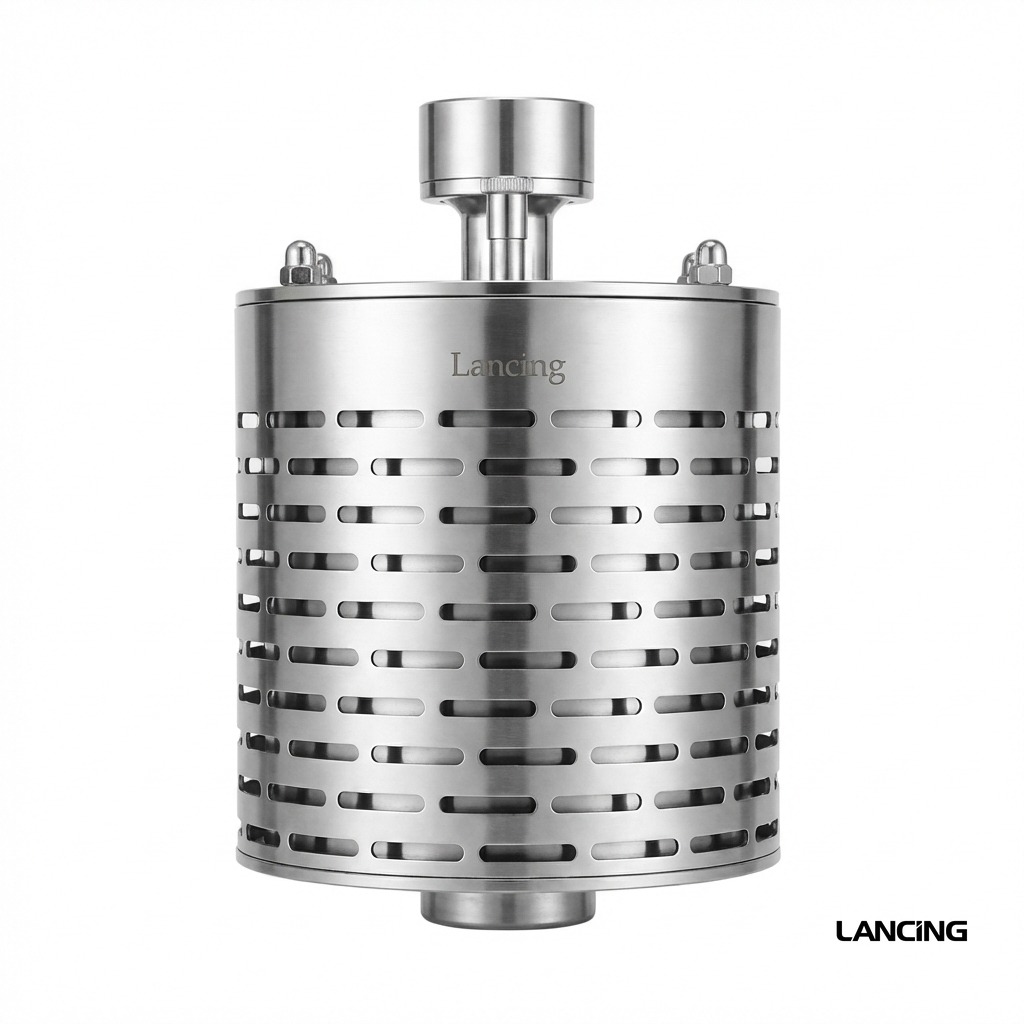

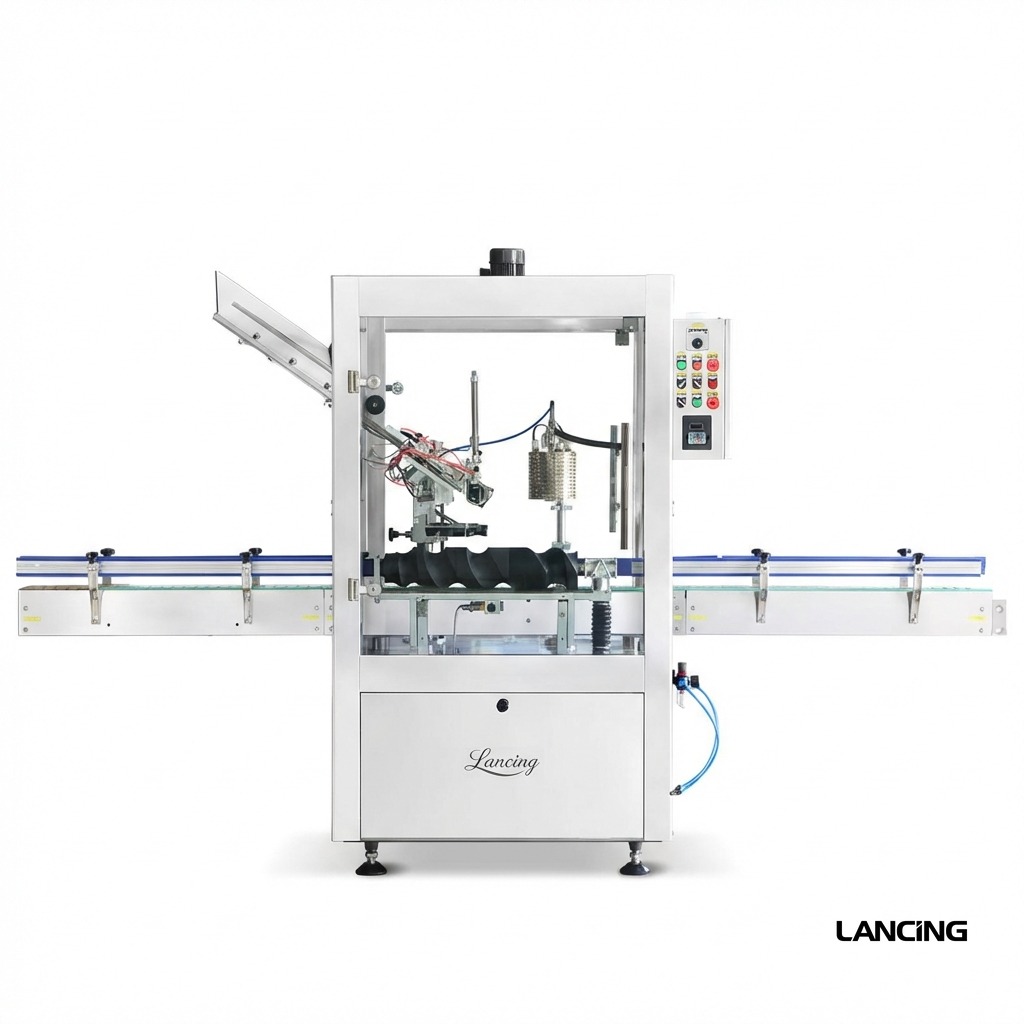

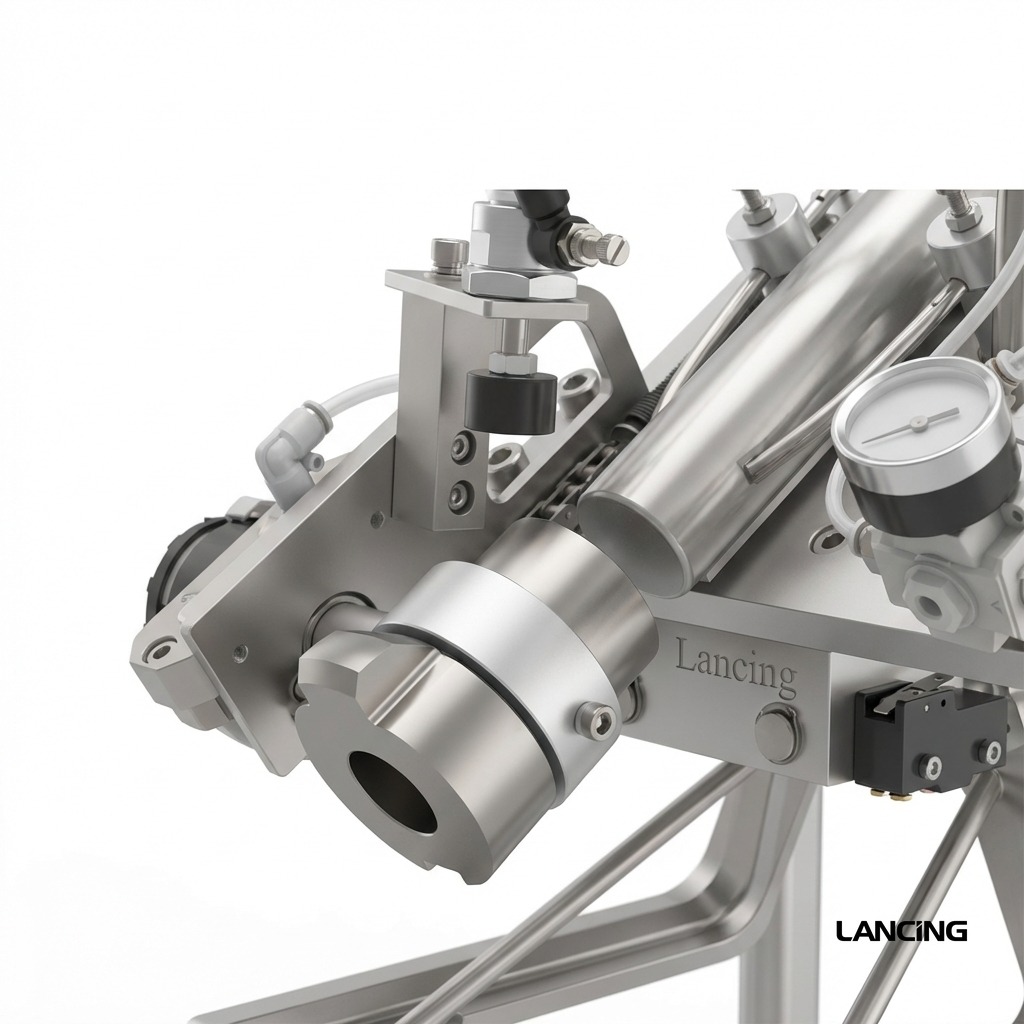

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-SXRS1 |
| Power Supply | 110/220/380V, 50-60Hz, 4kW |
| Bottle Height | 180-350mm |
| Wine Capsule Size | Height: 30-70mm |
| Wine Capsule Diameter | 30-50mm |
| Bottle Diameter | 60-100mm |
| Capacity | 2000bph |
| Suitable Material | PVC |
| Temperature Range | 0-300℃ |
| Air Compressor Connector | OD 8mm |
| Machine Size | About 2190 950 1860mm |
| Package Size | About 1850 1120 2180mm |
| Package Weight | About 483kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
