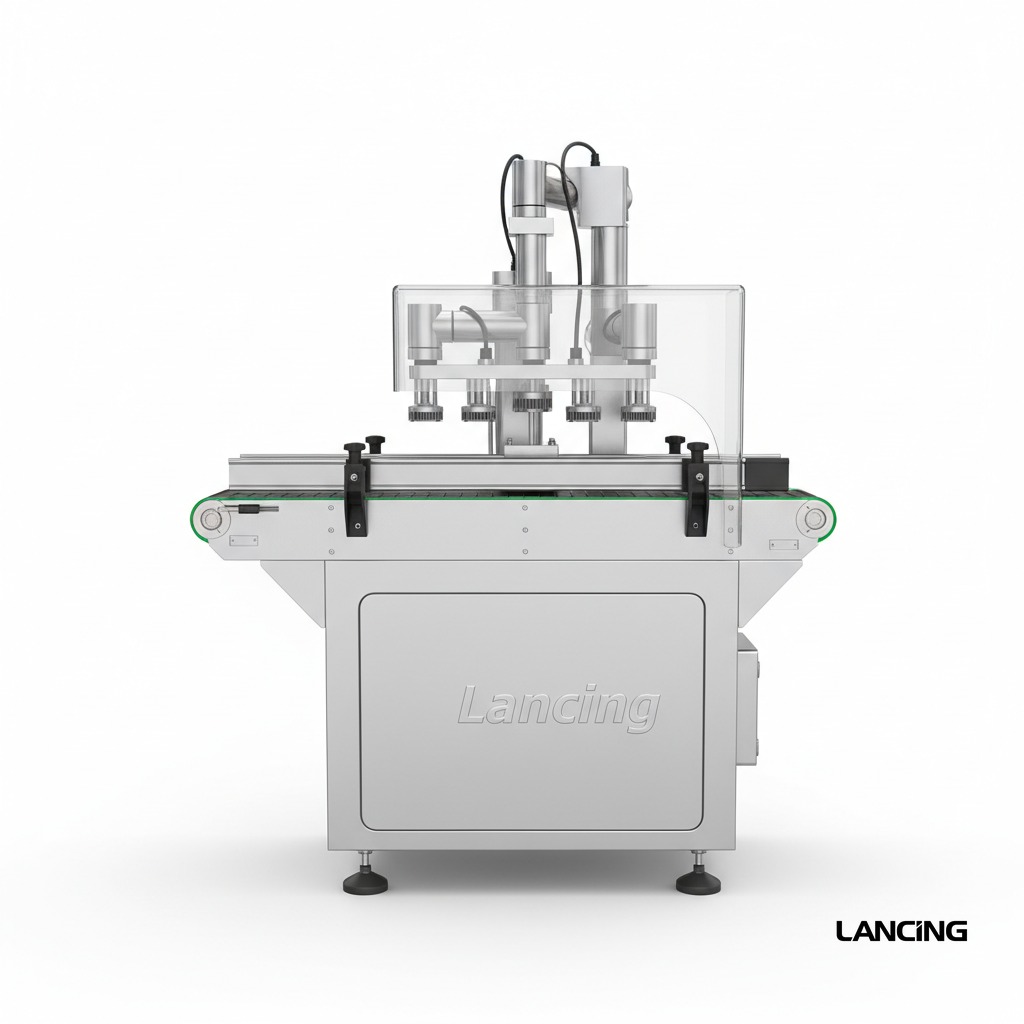

Tabletop Automatic Bottle Capping Machine
Machine overview and key points for quotation.
The LU-XG1860 is a compact automatic capping machine designed for various bottle types, including spray, dropper, and round caps. Its tabletop design saves space while delivering efficient, high-speed performance. Ideal for pharmaceutical, cosmetic, beverage, and daily chemical industries, this machine streamlines production and reduces manual labor with consistent, reliable capping.
Throughput
20–60 bottles/min (depending on bottle and caps)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC220V/110V 50–60 Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-XG1860 |
| Voltage | AC220V/110V 50–60 Hz |
| Power | 500 W |
| Bottle Height | 50–200 mm |
| Bottle Caps Diameter | 20–60 mm |
| Working Speed | 20–60 bottles/min (depending on bottle and caps) |
| Conveyor Length | 1050 mm |
| Working Pressure | 0.4–0.6 MPa |
| Package Size | About 1190×750×960 mm |
| Package Weight | About 103 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
