Machine overview
ZS-TB833R2 High Speed Corner Labeling Machine
Machine overview and key points for quotation.
The Lancing UK ZS‑TB833R2 is a high‑speed automatic corner labeling machine engineered for tamper‑evident applications on boxed products such as electronics, cosmetics, pharmaceuticals and food packaging. Supporting up to 100 pcs per minute, it enables double‑sided labeling including hanging cartons with exceptional precision and stability. By providing secure corner seals, it prevents unauthorized opening, ensures product authenticity and enhances packaging presentation, making it an ideal solution for modern retail, logistics and industrial production lines.
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
40–100 pcs/min (depends on product size)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220V, 50/60Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-TB833R2 |
| Power Supply | 220V, 50/60Hz |
| Labeling Capacity | 40–100 pcs/min (depends on product size) |
| Labeling Accuracy | ±1 mm |
| Suitable Bottle Diameter | Customized |
| Suitable Bottle Height | Customized |
| Air Pressure Requirement | 0.4–0.6 MPa |
| Label Size | Length: 15–250 mm Height: 15–150 mm |
| Length | 15–250 mm |
| Height | 15–150 mm |

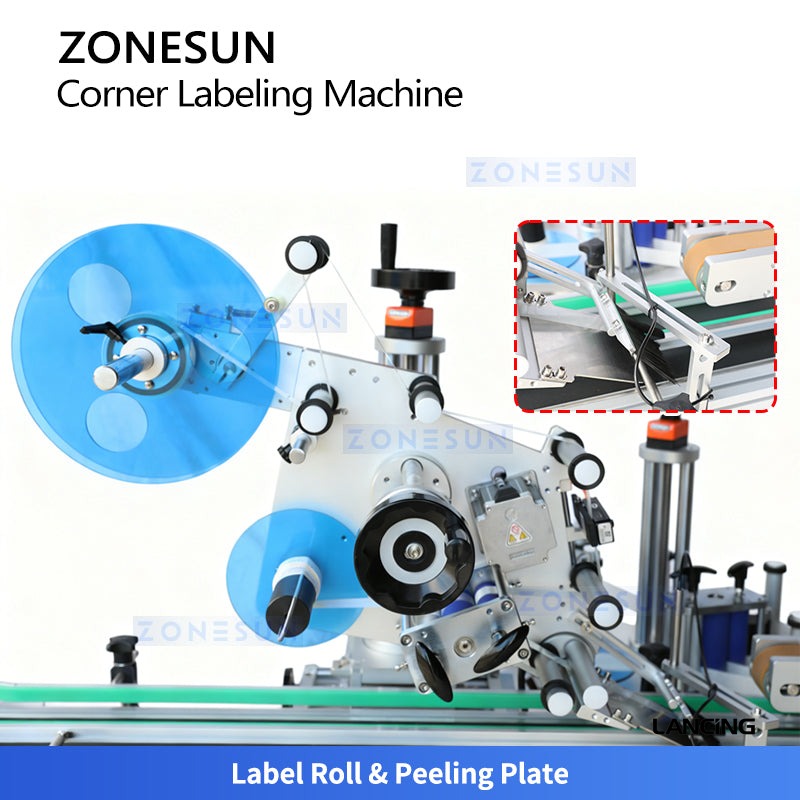

| Roll Inside Diameter | Ø76 mm |
| Roll Outside Diameter | Ø350 mm |
| Conveyor Size (W×L) | 112 × 2000 mm |
| Machine Dimensions (L×W×H) | About 2526 × 805 × 1450 mm |
| Machine Weight | About 180 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
