Machine overview
ZS‑TBXP1 Flat Surface Sucker Feeding Plastic Bag Labeler
Machine overview and key points for quotation.

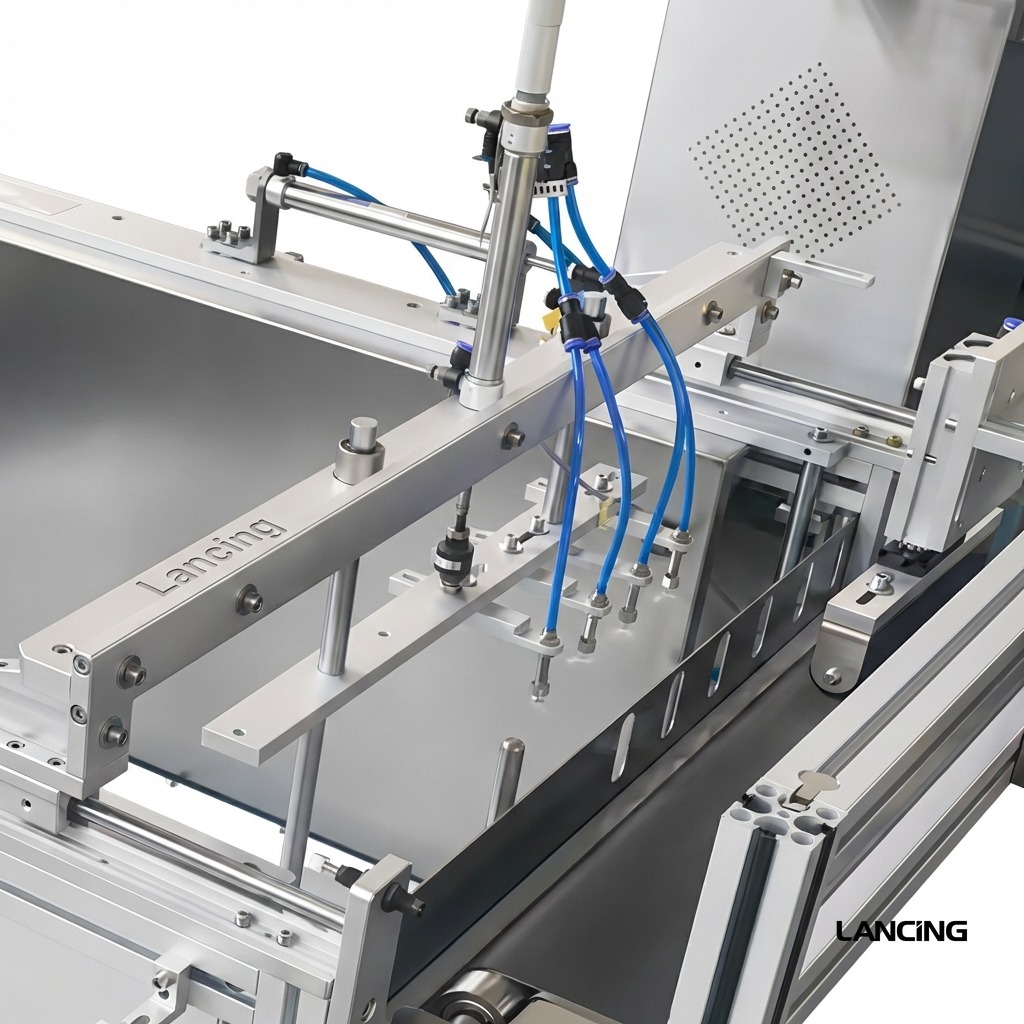

The Lancing UK ZS‑TBXP1 is a flat surface labeling machine designed for plastic bags, films, and other thin materials prone to static electricity. Featuring a sucker‑feeding system, it efficiently separates and feeds materials that tend to stick together. Capable of labeling plastic bags, film, paper sheets, cardboard, brochures, and similar items, it operates at 25–45 pieces per minute with a labeling accuracy of ≤ ±1 mm. Built with premium components, including a Panasonic PLC, MCGS display, SICK photoelectric eye, BEST stepping motor, and JNC air cylinder, it ensures stable performance for industrial labeling applications.
Throughput
25-45 pcs/min (Depending on products and labels)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 50-60Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| L | 40-200mm |
| W | 40-180mm |
| H | 0.2-5mm |
| About | 300kg |
| Machine model | LU-TBXP1 |
| Power Supply | 110/220V 50-60Hz |
| Margin of Error | ≤±1mm |
| Speed | 25-45 pcs/min (Depending on products and labels) |
| Suitable Product Size | L: 40-200mm W: 40-180mm H: 0.2-5mm |
| Suitable Label Size | L: 6-150mm W: 15-130mm |
| Weight | About 300kg |
| Size | About 2000*850*1400mm |
| PLC | Panasonic |

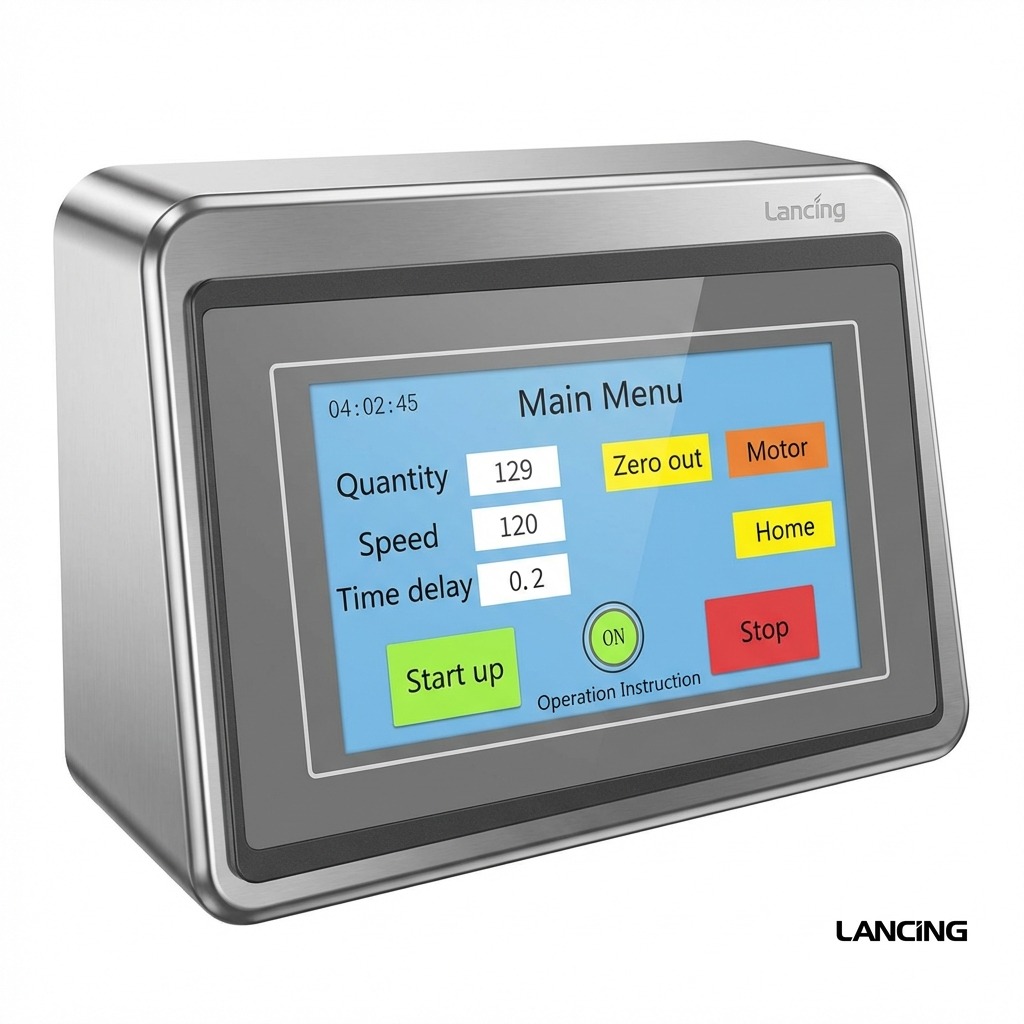

| Display | MCGS |
| Photoelectric Eye | SICK |
| Stepping Motor | BEST |
| Air Cylinder | JNC |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
