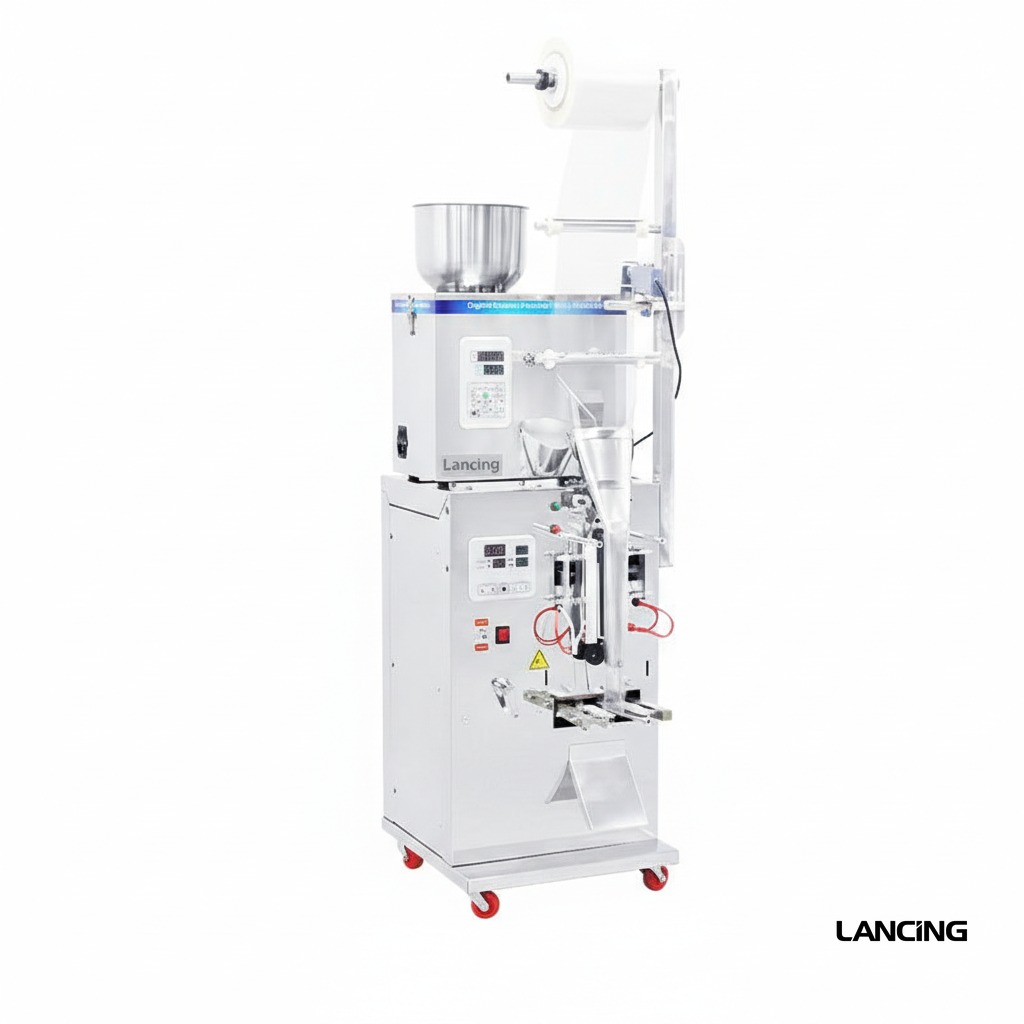

Weighing Powder Filling And Three Side Sealing Machine

Machine overview

Weighing Powder Filling And Three Side Sealing Machine

Machine overview and key points for quotation.

Advantage 1.Three-side sealing / Two-way temperature control:the three-side sealing design,the machine will seal the product from left and right.Two-way temperature control, the temperature for sealing top and bottom side can be set separately. Perfect sealing and looks well. 2.Made of stainless:the places where the materials pass through are made of stainless steel ,which ensure the material clean, and meet the requirement of food processors 3.Vibrator:the machine adopts the principle of magnetic vibration, and the vibration intensity is strong. Both the grain and the powder are filled easily and perfectly,and will not get jammed. 4.Intelligent control panel:the machine adopts an independent temperature control panel, the temperature for sealing top and bottom side can be set separately, it is with high heating rate and works well 5.Bag former:the stainless steel arc design is sleek, which makes the package molding accurate and the effect is better Features 1. The appearance is clean and clear, high-end, suitable for factories, shops, etc. It does not require manual packaging and is highly efficient. The machine uses a back seal design and uses a heating wire to cut the bag. 2.The machine is a fully automatic packaging machine which is compose of two machines. You can use top packing machine to pack and weigh other items, or you can use the bottom sealing machine separately. This is the biggest advantages of this machine, it can also be used as fully automatic or as a semi-automatic. 3.If you choose a machine with date printer,you can print logo,trademark,date on your package.
Throughput
15-25 packs / minute (depending on the product)
Target speed depends on product, pack and operator workflow.
Format range
1-50g (adjustable, customizable)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
200V/50HZ 100V/60HZ
We’ll confirm voltage, air and installation requirements for your site.

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Product model LU-200
Working voltage 200V/50HZ 100V/60HZ
Rated power. 360w
Packing speed 15-25 packs / minute (depending on the product)
Weighing range 1-50g (adjustable, customizable)
Error range about 0.1-0.2 (depending on the product)
Suitable for coil heat sealed bag coil
Packing category Three-side packaging
Application This product is suitable for granules,powders, pills, medlar, melon seeds, dog food, coffee beans,oatmeal, raisins, powder, tea, electronic hardware, etc.

CAD / Dimensions

Footprint and dimension reference for planning, guarding and line integration.

No CAD drawing available for this machine.

Site requirements

  • Confirm access for delivery, positioning and commissioning.
  • Verify utilities and air supply requirements during specification.
  • Allow clearance for guarding, maintenance and future upgrades.
