Machine overview
ZS-XG16D3 Automatic T-Cork Press Capping Machine
Machine overview and key points for quotation.

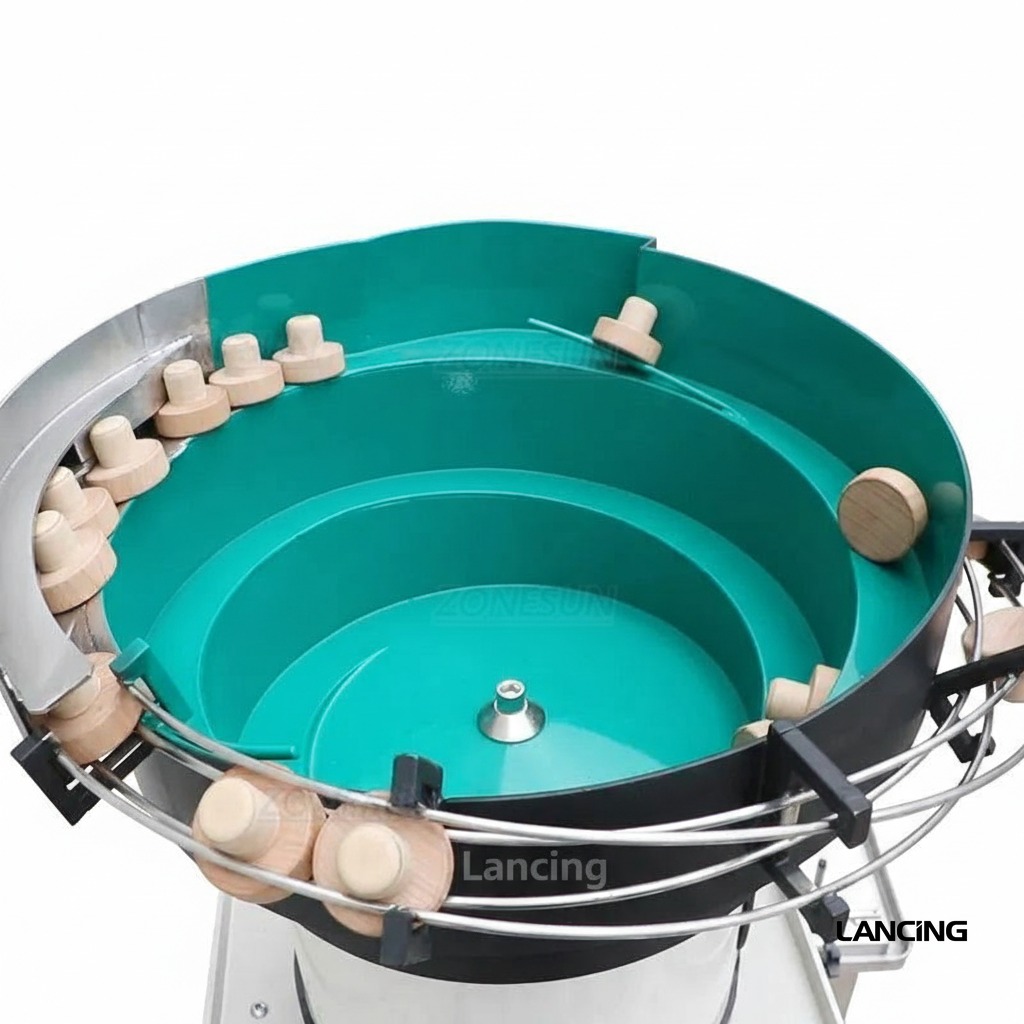

This bottle cap pressing machine is equipped with vibrating bowl sorter, which can make bottle caps be in order before capping work.It is suitable for the press type bottle caps like liquor bottle with T-cork, the inner plug.It is widely used in brewing, cosmetics or daily chemical industries.
Throughput
20-30 bottles/minute(depending on bottle and caps)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
AC220V/110V 50-60HZ
We’ll confirm voltage, air and installation requirements for your site.

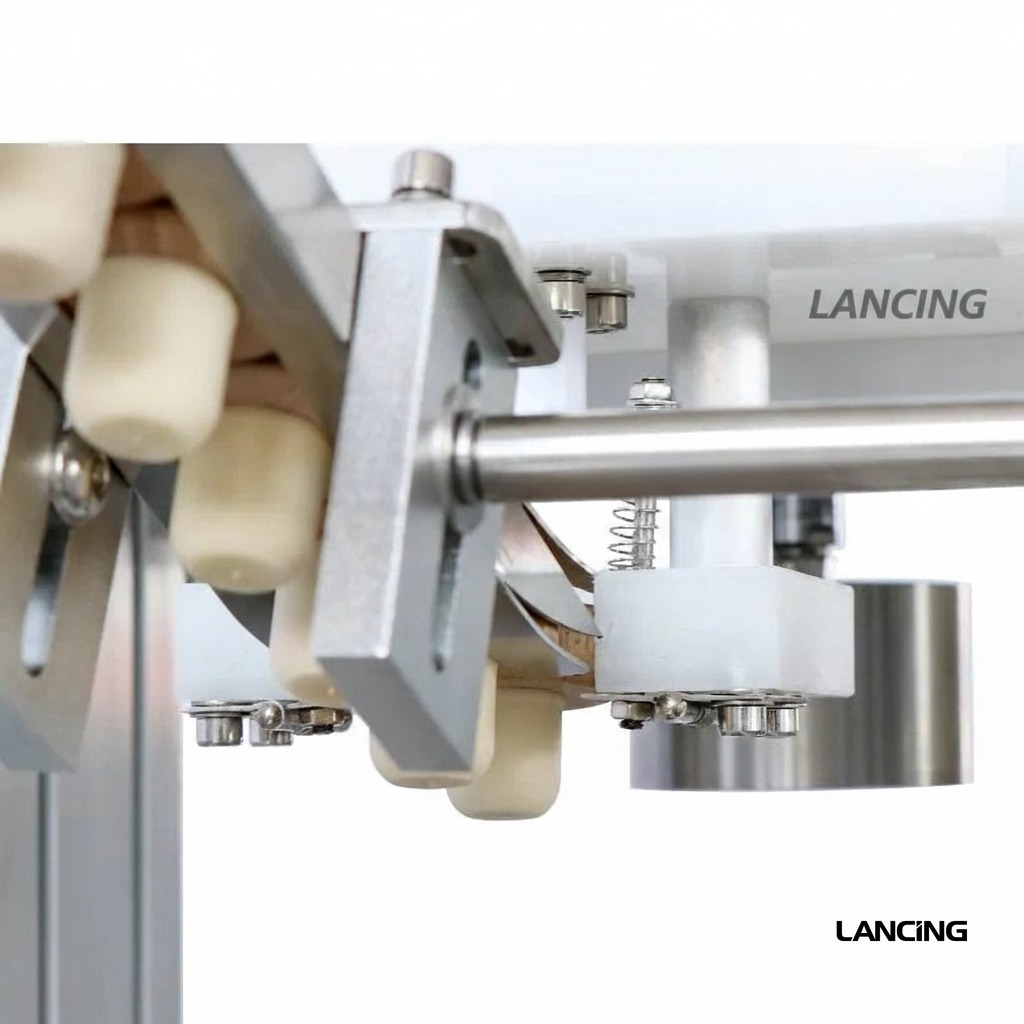

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-XG16D3 |
| Working Voltage | AC220V/110V 50-60HZ |
| Bottle Height | 30-300mm |
| Bottle Caps Diameter | 18-70mm |
| Bottle Diameter | 30-100mm |
| Working Speed | 20-30 bottles/minute(depending on bottle and caps) |
| Working Pressure | 0.4-0.6 MPa |
| Size Of Air Compressor Connector | OD 8mm |
| Conveyor Length | 115mm(W)1020mm(L) |
| Machine Size | About 21909501860mm |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
