Machine overview
ZS-XG440S2 Automatic Servo Capper with Dual-Track Bowl Feeder
Machine overview and key points for quotation.

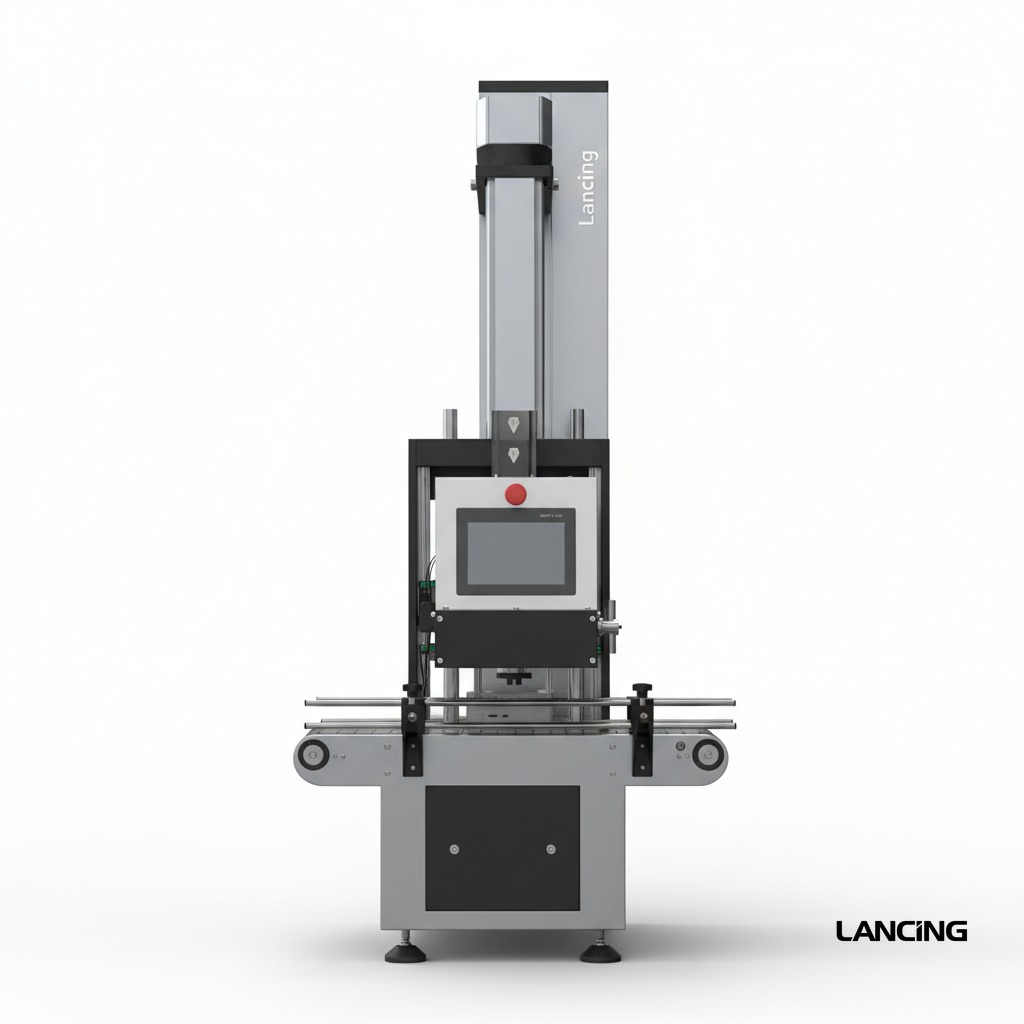

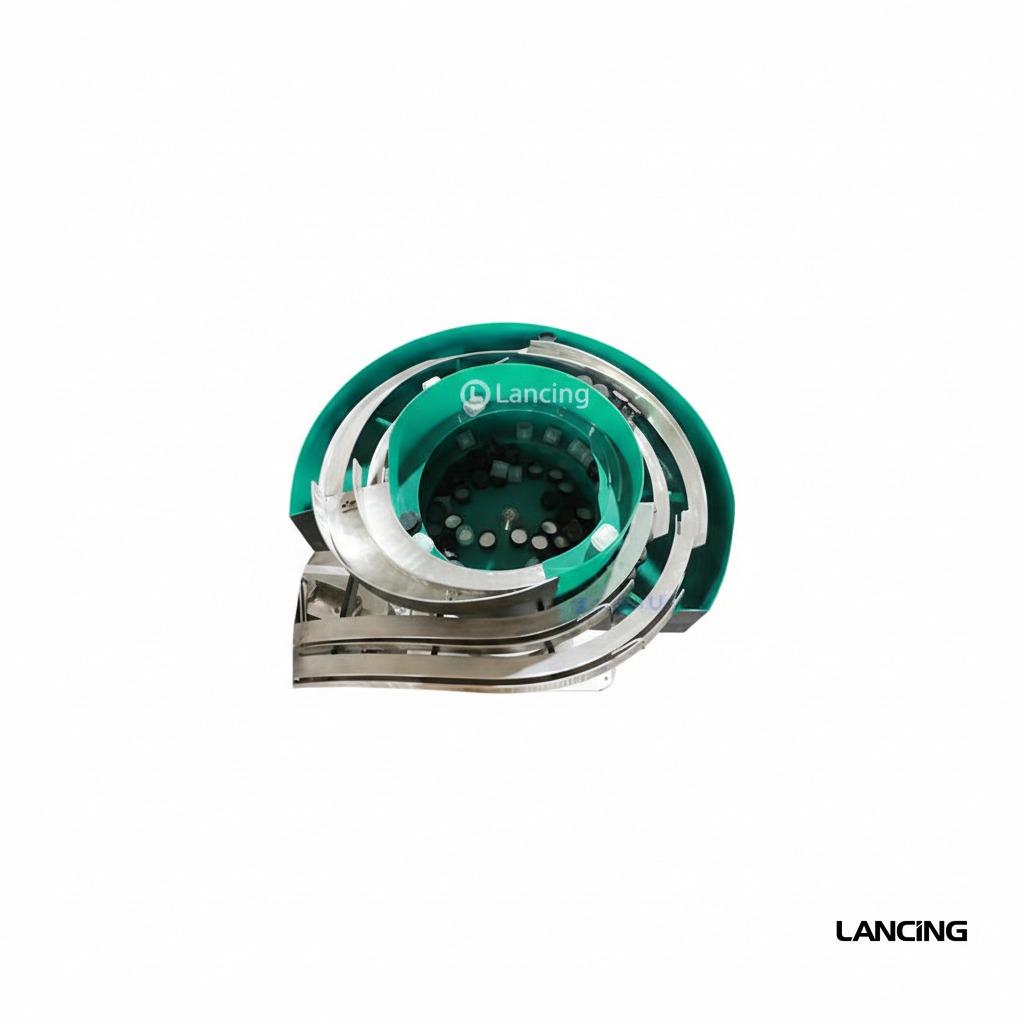

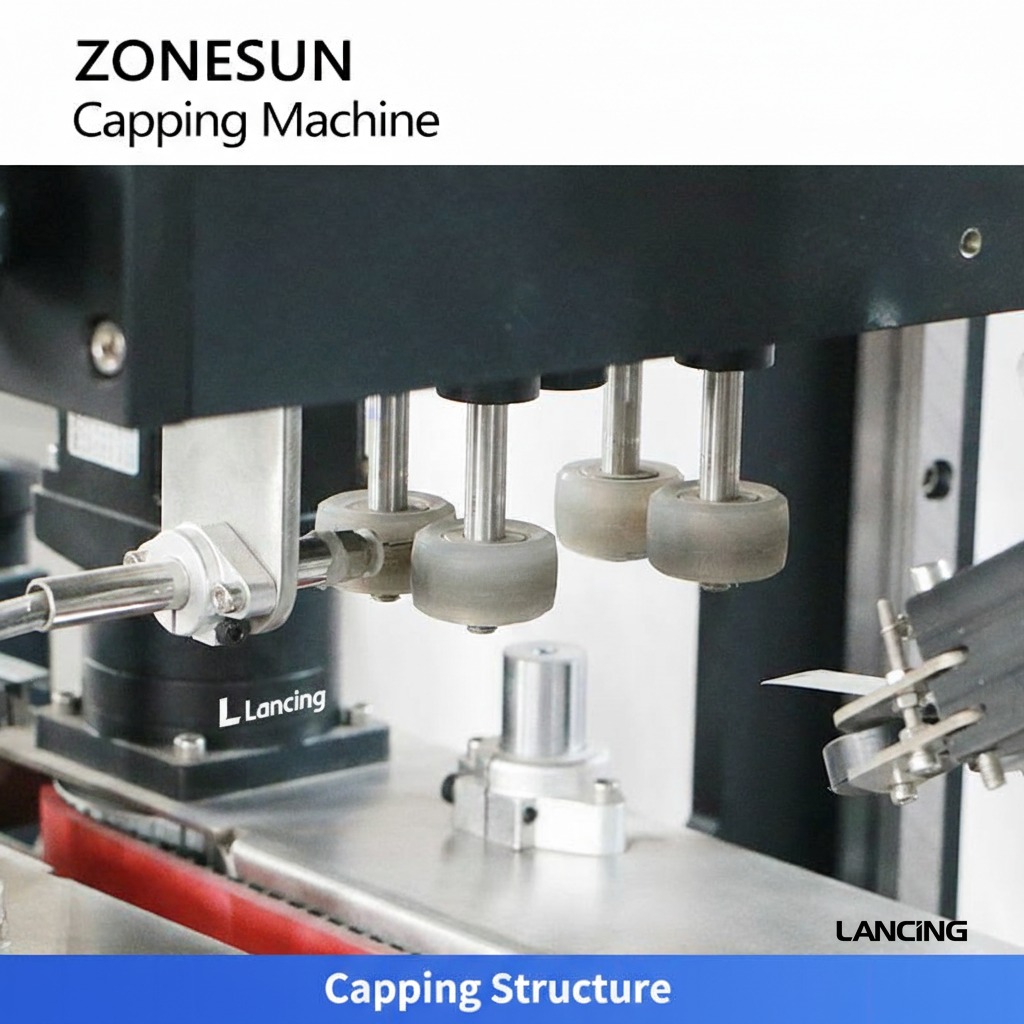

The Lancing UK LU-XG440S2 automatic capping machine is engineered for efficiency and precision. It utilizes a servo motor-driven belt system for secure bottle handling, precisely controlling bottle movement to the capping station. The four-wheel capping mechanism , also powered by a servo motor , offers adjustable speed and timing for optimal sealing. A dual-track vibrating bowl feeder accommodates two different cap types simultaneously , eliminating the need for changeovers. With a production capacity of up to 40 bottles per minute , this machine is ideal for streamlining your capping process.
Throughput
About 40 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V, 50–60Hz
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine Model | LU-XG440S2 |
| Voltage | 110/220V, 50–60Hz |
| Machine Power | About 3.55KW |
| Suitable Bottle Size | Height = 50–300 mm |
| Suitable Cap Size | Diameter 1 = 30–120 mm, Diameter 2 = 20–60 mm (Size of two caps needs to be close) |
| Working Speed | About 40 bottles/min |
| Machine Size | About 2000 × 765 × 1750 mm |
| Machine Weight | About 400 kg |
| Package Size | About 2060 × 800 × 1860 mm |
| Package Weight | About 450 kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
