Machine overview
ZS-YT4T-4PX Automatic Paste Lotion Bottle Filling Machine
Machine overview and key points for quotation.
This automatic piston pump filling machine is equipped with feeding pump,this is more convenient for feeding filling material.Filling work is controlled by servo motor, this is can simplify machine operation and improves working efficiency. Different filling range can be chosen and multiple filling nozzle can be customized according to operation need.This machine is suitable for filling hot sauce, cosmetic cream,lotion etc.
Throughput
About 30-50 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
10-180ml / 30-500ml / 100-1000ml
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V 50-60HZ 1KW
We’ll confirm voltage, air and installation requirements for your site.

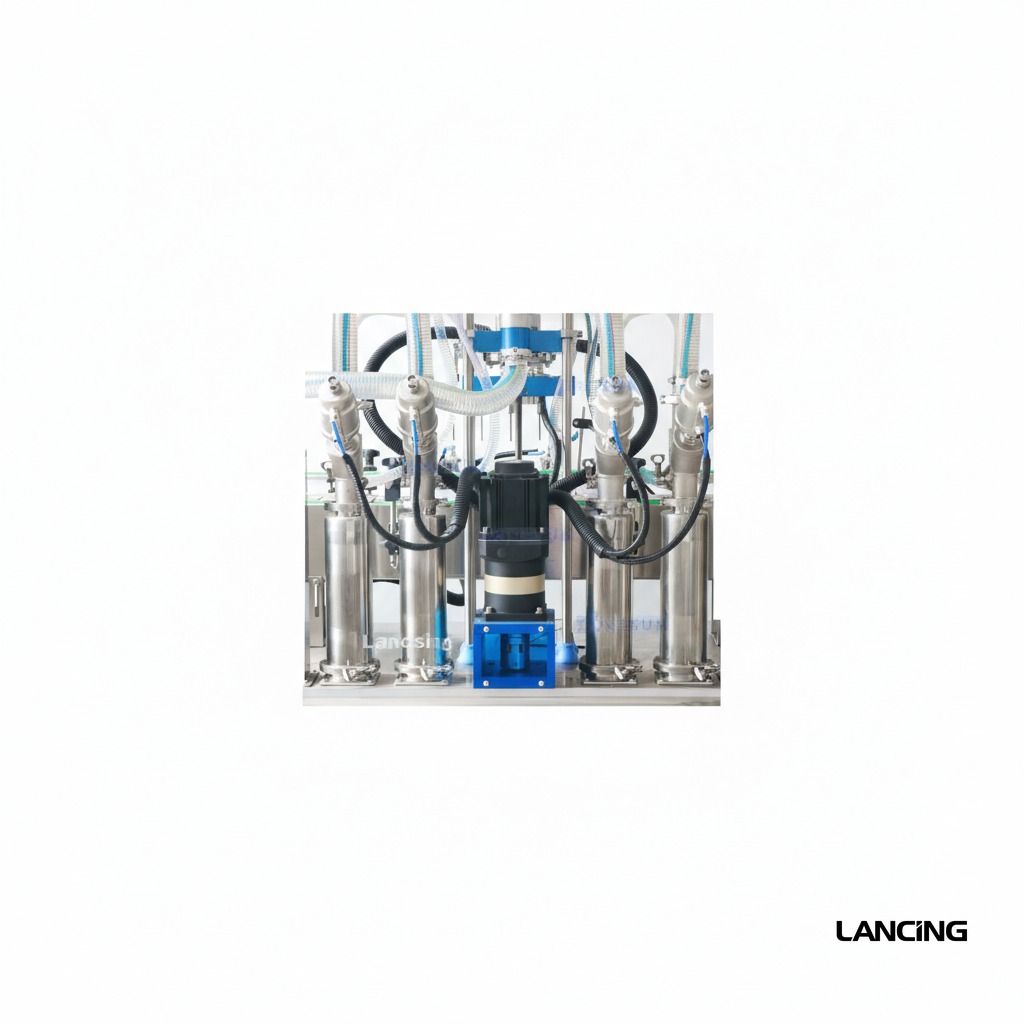

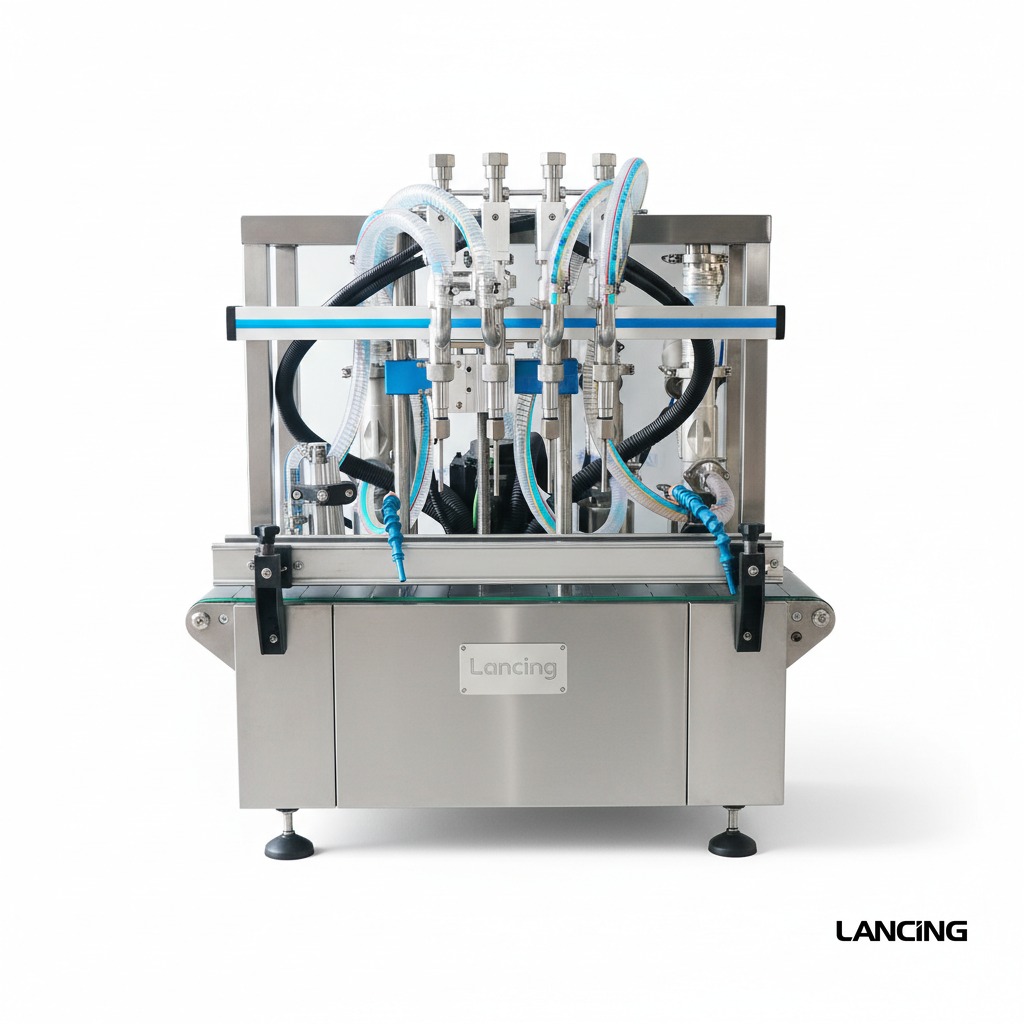

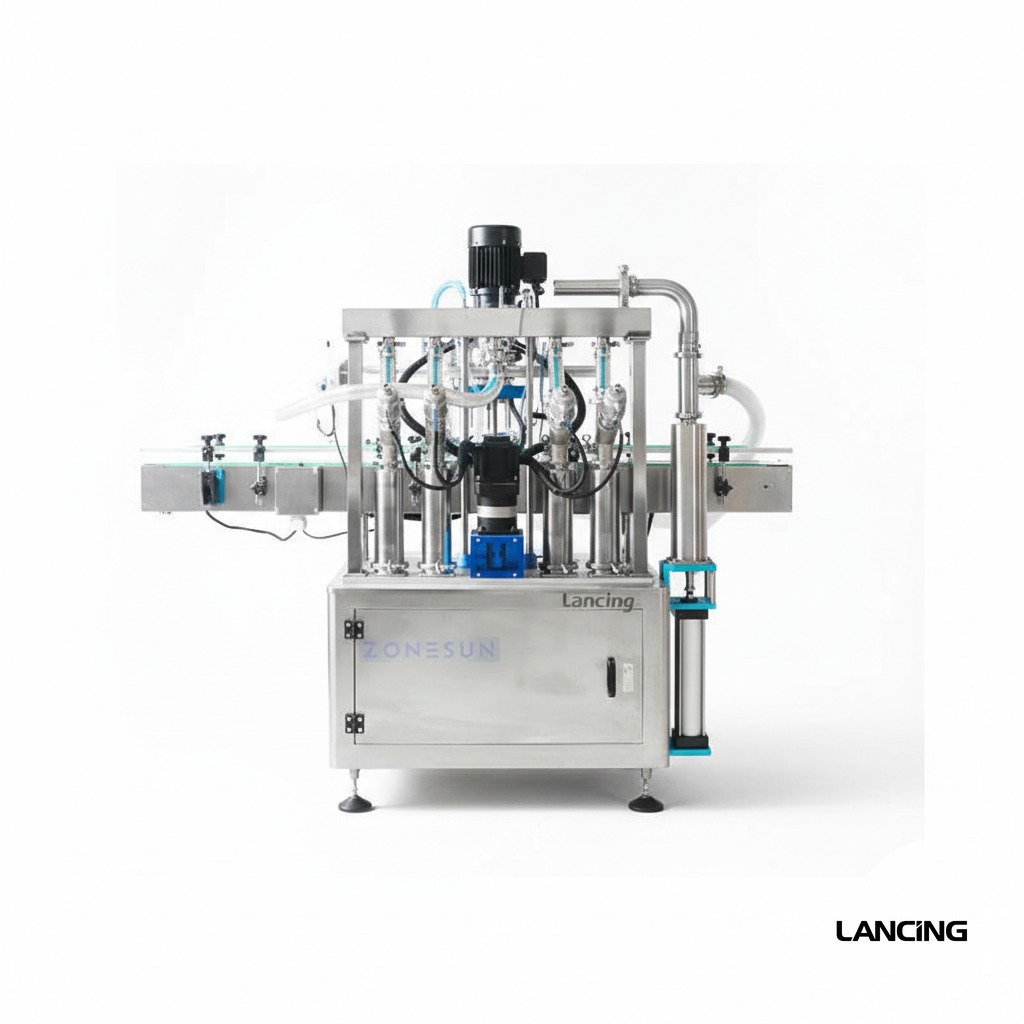

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Model | LU-YT4T-4PX |
| Voltage | 110/220V 50-60HZ 1KW |
| Filling Range | 10-180ml / 30-500ml / 100-1000ml |
| Working Speed | About 30-50 bottles/min |
| Filling Pump | Piston pump |
| Filling Accuracy | ≤ ±1% |
| Filling Head | 4 (Customizable) Inner dia.: 6mm 4 & 8mm 4 |
| Control | 7-inch touch screen |
| Storage Tank | 90L |
| Conveyor | 2000 × 114mm (Customizable) |
| Air Supply | 0.6-0.8MPa (Air compressor required, sold separately) |
| Size | 2000 × 800 × 1800mm |
| Weight | 200kg |
| Packaging Size | 2070 × 960 × 2010mm (100-1000ml) |
| Packaging Weight | 392kg (100-1000ml) |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
