Machine overview
ZS-YT4TZ Automatic 4 Nozzles Piston Liquid Filling Machine
Machine overview and key points for quotation.
Application This machine is suitable for filling liquid, such as shampoo, laundry detergent, cooking oil, etc. It can work with automatic labeling machine and capping machine, realizing automated production.
Throughput
20–50 bottles/min
Target speed depends on product, pack and operator workflow.
Format range
100–1000ml (5–100ml / 10–300ml / 50–500ml / 500–3000ml / 1000–5000ml can be chosen)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
110/220V, 800W
We’ll confirm voltage, air and installation requirements for your site.

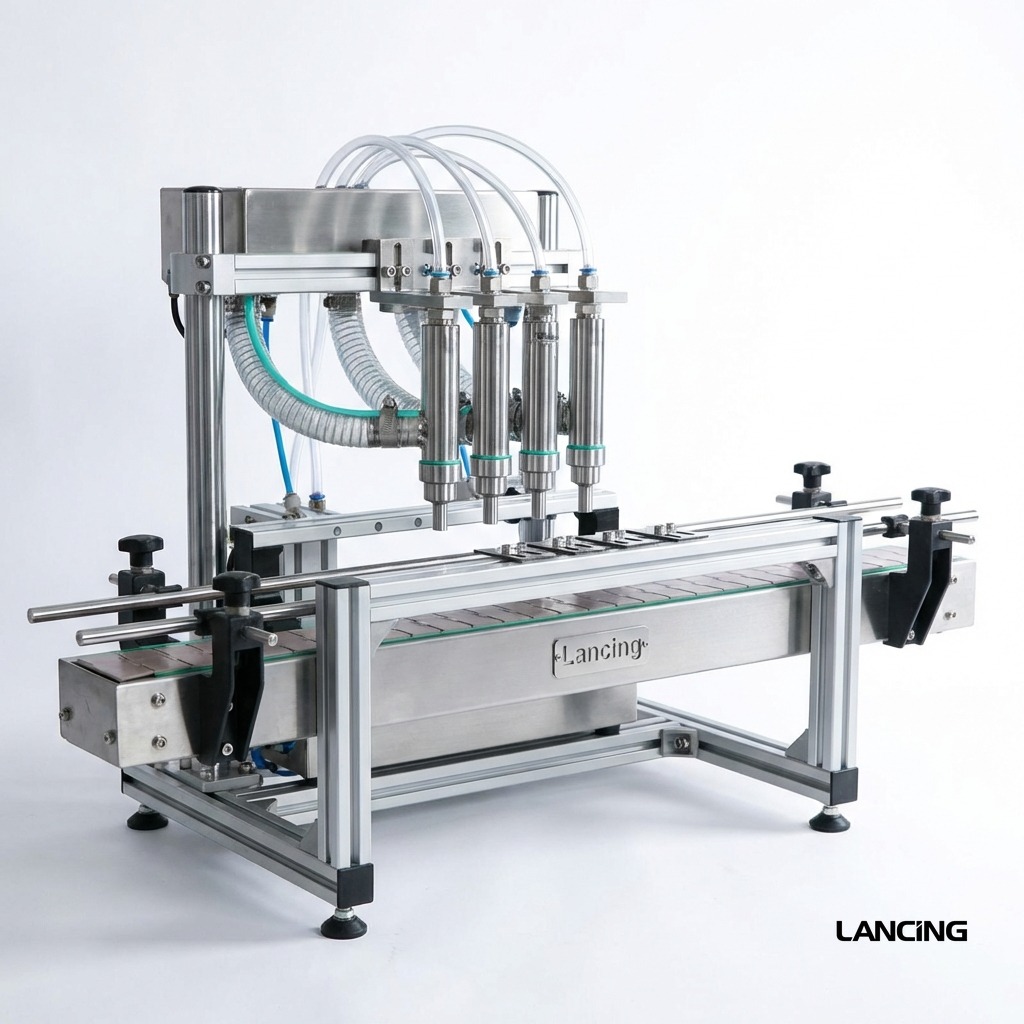

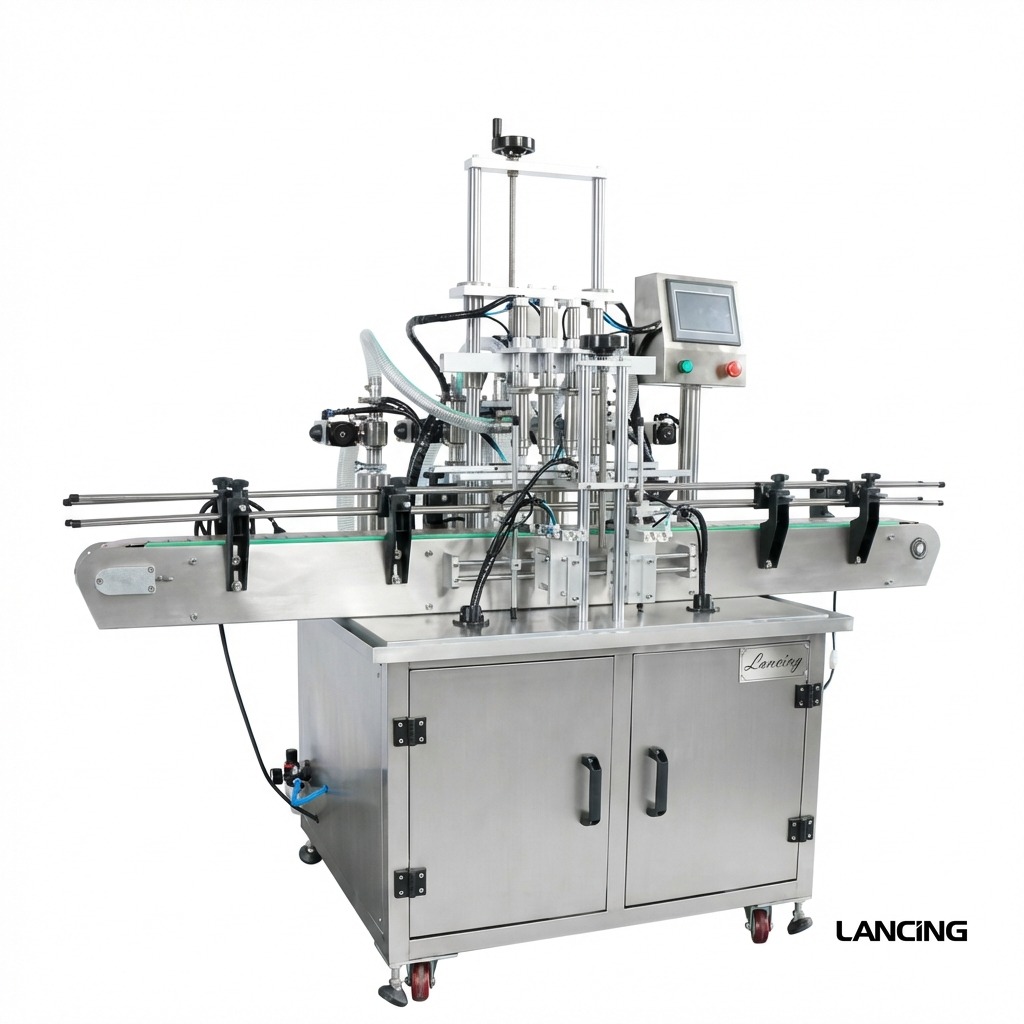

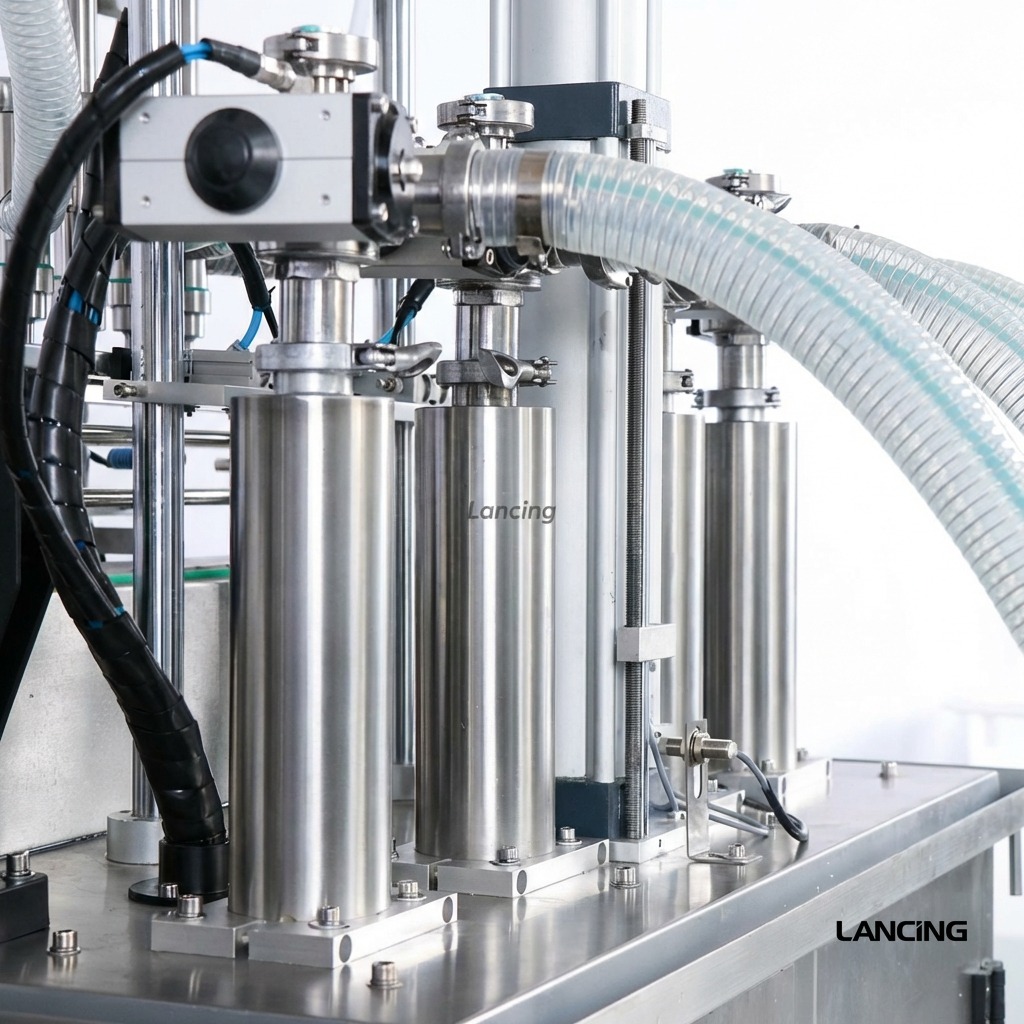

Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
| Parameter | Value |
|---|---|
| Machine model | LU-YT4TZ |
| Machine power | 110/220V, 800W |
| Air pressure | 0.5–0.8MPa |
| Filling range | 100–1000ml (5–100ml / 10–300ml / 50–500ml / 500–3000ml / 1000–5000ml can be chosen) |
| Filling accuracy | About ±3g |
| Filling speed | 20–50 bottles/min |
| Conveyor belt size | 1980×100mm |
| Machine size (L×W×H) | About 1025×900×1700mm |
| Machine weight | About 259kg |
| Package size (L×W×H) | About 2060×960×1880mm |
| Package weight | About 360kg |
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
