6‑Head Servo Piston Paste Filling Machine

Machine overview

6‑Head Servo Piston Paste Filling Machine

Machine overview and key points for quotation.

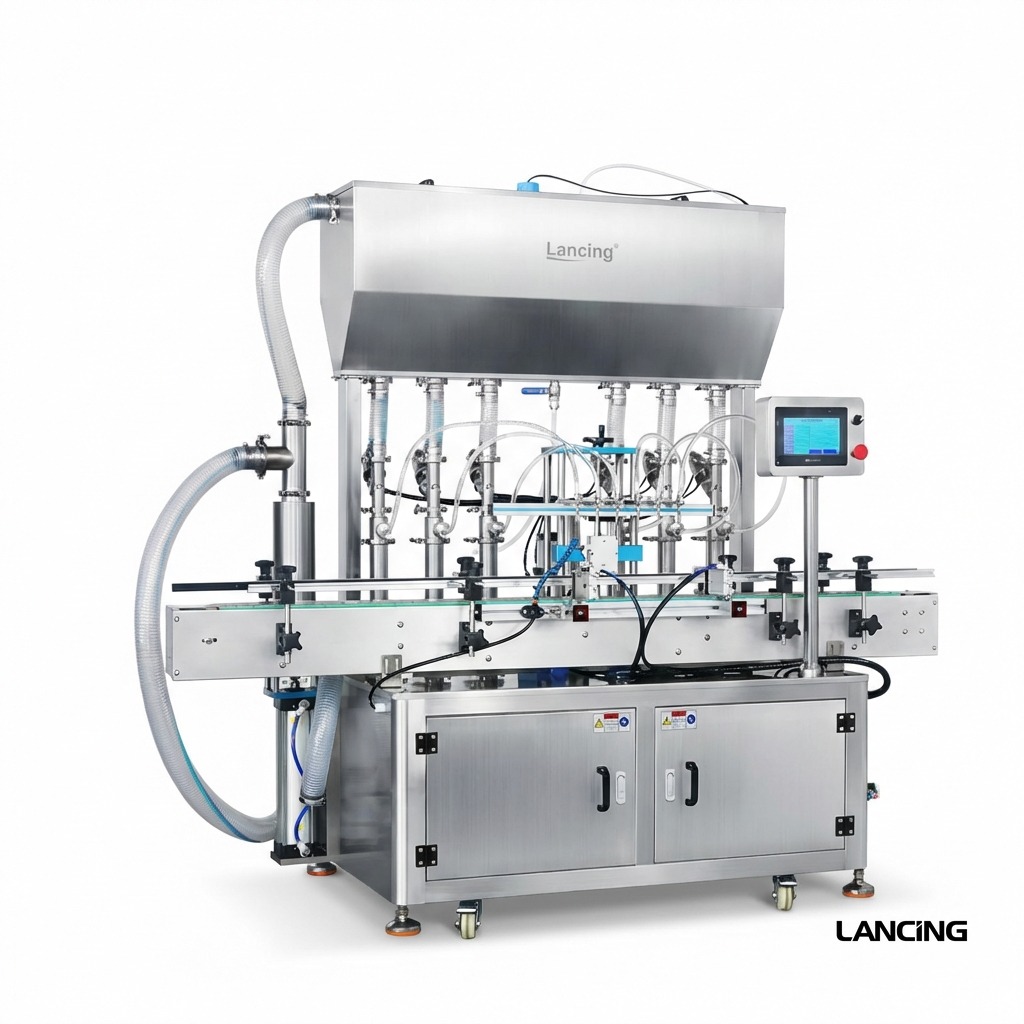

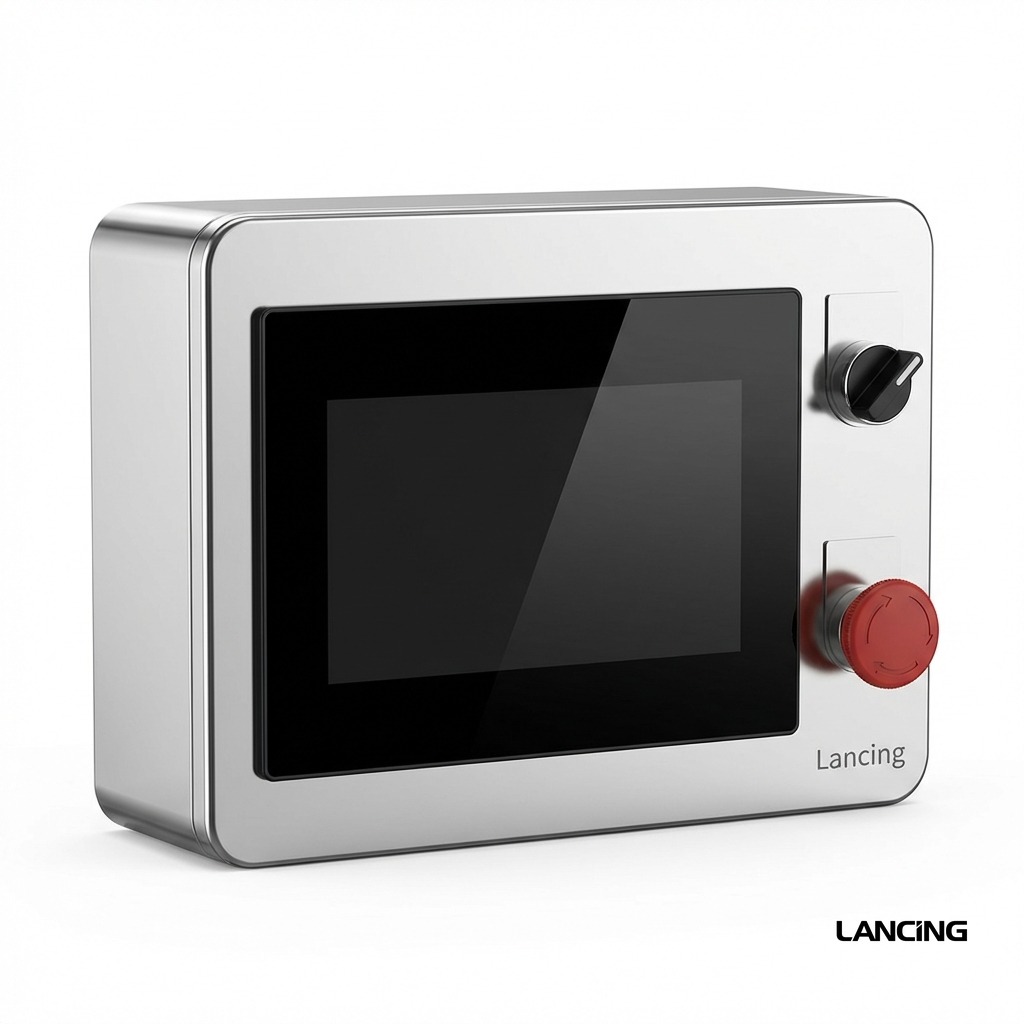

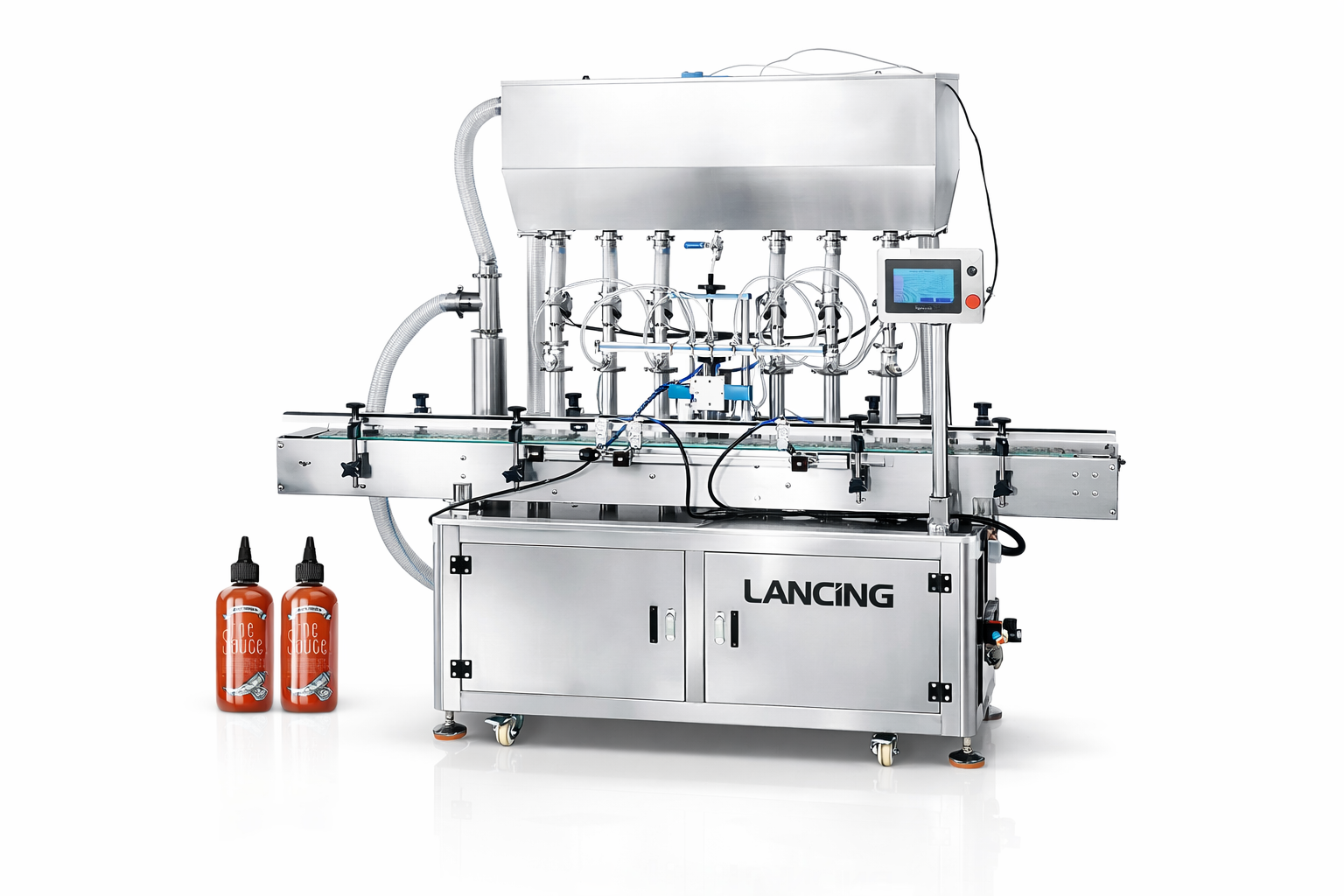

The Lancing UK LU‑YTGt‑6PX Six‑Head Servo Piston Filling Machine is engineered for high‑precision filling of pastes and liquids. Featuring a 160 L large hopper and feeding pump, it ensures smooth material transfer for continuous production. Its six piston pumps, driven by servo controls, allow operators to set the filling volume directly for enhanced accuracy and flexibility. Capable of processing 30–70 bottles per minute, this customizable machine is ideal for medium‑ to high‑volume manufacturing lines in food, chemical, and cosmetic industries. Controlled by a servo motor, the machine allows for precise filling volume settings via the control panel. It is suitable for viscous liquids such as shampoo, lotion, and laundry detergent. Equipped with a dust cover, it can also be integrated with other equipment for a complete production line. Automatic 2 Heads Servo Piston Pump Filling Machine is engineered for high-efficiency filling of viscous products like shampoo, lotion, and detergent. Powered by a servo motor, it delivers adjustable filling volumes with excellent ±1% accuracy. Its enclosed design enhances hygiene, while the control panel offers intuitive operation. Ideal for factories and manufacturers looking to automate filling processes, this machine integrates seamlessly with other packaging equipment to form a complete production line.
Throughput
Approx. 30 – 70 bottles/min (varies by material & bottle size)
Target speed depends on product, pack and operator workflow.
Format range
100 – 1000 ml (customizable)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
220 V / 110 V, 50–60 Hz
We’ll confirm voltage, air and installation requirements for your site.

Machine in operation

See the machine running. (Set Video URL in your product data.)

Specifications

Reference specification table. Final configuration may vary with options and scope.

ParameterValue
Model LU‑YTGt‑6PX
Voltage 220 V / 110 V, 50–60 Hz
Power 2 kW
Filling Heads 6 heads (customizable)
Filling Range 100 – 1000 ml (customizable)
Filling Speed Approx. 30 – 70 bottles/min (varies by material & bottle size)
Pump Type Servo Piston Pump
Filling Accuracy ±1 %
Air Pressure 0.5 – 0.8 MPa
Data Storage Available
Machine Size Approx. 2030 × 900 × 1850 mm

CAD / Dimensions

Footprint and dimension reference for planning, guarding and line integration.

Open in new tab

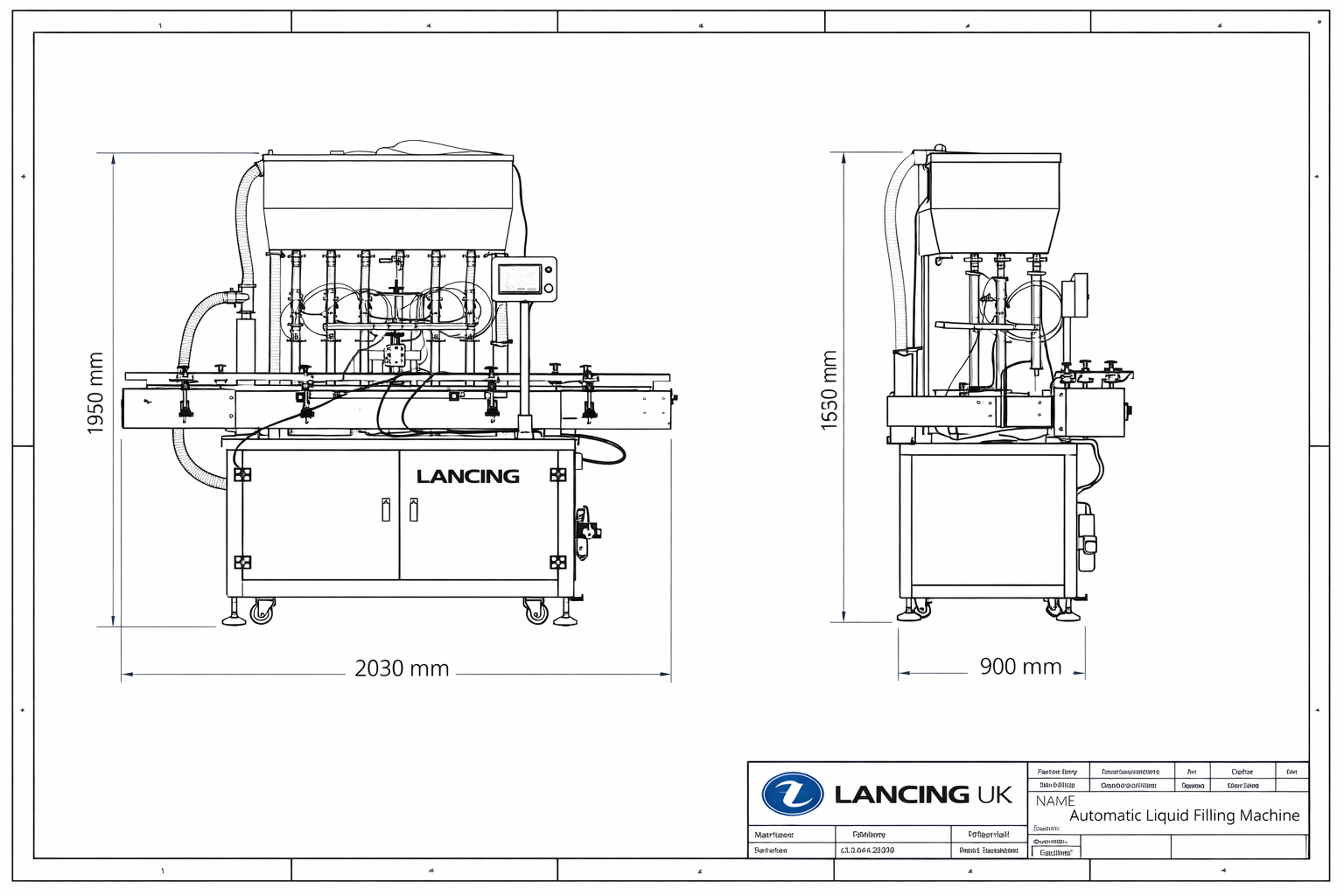

CAD drawing for 6‑Head Servo Piston Paste Filling Machine

Tip: click the drawing (or the button) to zoom.

Site requirements

  • Confirm access for delivery, positioning and commissioning.
  • Verify utilities and air supply requirements during specification.
  • Allow clearance for guarding, maintenance and future upgrades.
