Machine overview
ZS-YTPPR2 Dual Nozzle Peristaltic Pump Liquid Filling Machine
Machine overview and key points for quotation.

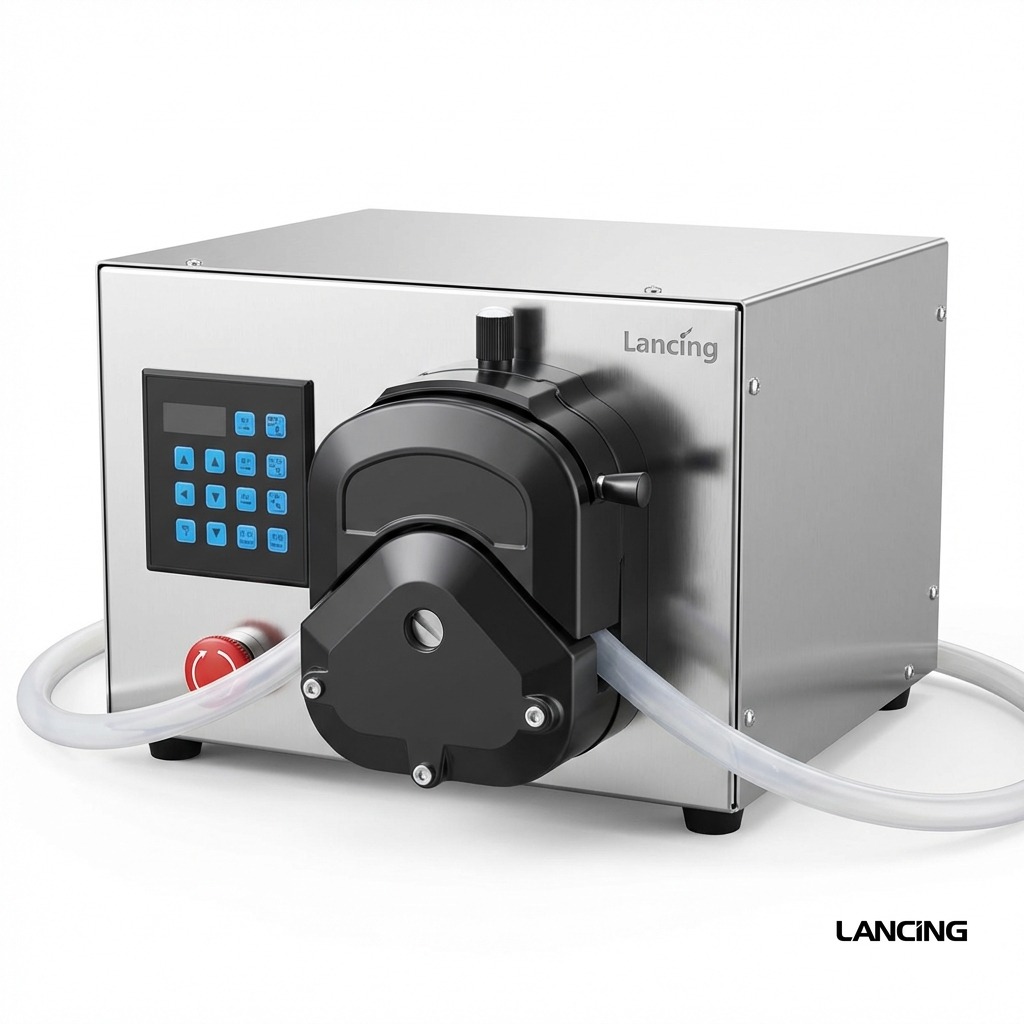

The Lancing UK LU-YTPPR2 is a semi-automatic liquid filling machine equipped with dual peristaltic pumps, delivering a high flow rate of up to 12,000 ml/min per channel. Designed for hygienic and contamination-free operation, the liquid flows exclusively through replaceable tubing—ideal for handling corrosive or sensitive fluids. With precise filling accuracy (≤±1%) and easy maintenance, it’s widely used in food, cosmetics, and daily chemical industries for products like glue, salad oil, and more. Machine Specifications – Model LU-YTPPR2 Parameter Specification Machine Model LU-YTPPR2 Voltage 220V / 110V, 50–60Hz Power 300W Pump Type Peristaltic Pump Flow Rate 12,000 ml/min × 2 Filling Accuracy ≤ ±1% Filling Nozzle Diameter Outer Diameter 6 mm Machine Dimensions 62 × 43 × 25 cm Machine Weight 20 kg Packing Dimensions 47 × 71 × 41 cm Gross Weight 38 kg
Throughput
Configurable (confirm during quote)
Target speed depends on product, pack and operator workflow.
Format range
Formats adjustable (bottle/closure dependent)
We’ll configure the machine to your bottle, closure and fill volume.
Utilities
Site utilities to be confirmed
We’ll confirm voltage, air and installation requirements for your site.
Machine gallery
Auto‑scrolling. Hover to pause.
Tip: Reorder images in the product manager — this carousel follows your order.
Specifications
Reference specification table. Final configuration may vary with options and scope.
No specifications listed yet.
CAD / Dimensions
Footprint and dimension reference for planning, guarding and line integration.
No CAD drawing available for this machine.
Site requirements
- Confirm access for delivery, positioning and commissioning.
- Verify utilities and air supply requirements during specification.
- Allow clearance for guarding, maintenance and future upgrades.
Talk to a specialist
We’ll confirm suitability, options, integration, and realistic throughput for your product.
Enquire about this machine
Send a message and we’ll respond with configuration options, pricing guidance and lead times.
